The high voltage flyback converter represents a sophisticated power supply topology that efficiently transforms electrical energy from one voltage level to another, particularly excelling in applications requiring elevated output voltages. This conversion device operates on the principle of storing energy in a magnetic field within a transformer core during one phase of operation and releasing that stored energy to the output during another phase. The high voltage flyback converter distinguishes itself through its ability to generate output voltages significantly higher than input voltages while maintaining electrical isolation between input and output circuits. At its core, the device consists of several essential components: a switching transistor that controls energy flow, a flyback transformer that stores and transfers energy, rectifying diodes that direct current flow, and filtering capacitors that smooth output voltage ripples. The technological sophistication of the high voltage flyback converter lies in its switched-mode operation, which allows for compact design and improved efficiency compared to traditional linear power supplies. The switching mechanism creates pulsed energy transfers at frequencies typically ranging from tens to hundreds of kilohertz, enabling smaller magnetic components and reduced overall system size. This converter type proves particularly valuable in applications demanding multiple output voltages with different polarities or magnitude levels, as the flyback topology naturally accommodates such requirements through transformer design variations. Industries relying on high voltage flyback converters span diverse sectors including medical equipment manufacturing, where they power diagnostic imaging systems and therapeutic devices; telecommunications infrastructure, providing reliable voltage conversion for network equipment; industrial automation systems requiring precise voltage regulation; consumer electronics like television sets and computer monitors; and scientific instrumentation demanding stable high voltage sources. The galvanic isolation inherent in the high voltage flyback converter design provides critical safety benefits by preventing direct electrical connection between input and output circuits, protecting both equipment and personnel from potential hazards. Modern implementations incorporate advanced control strategies utilizing pulse width modulation techniques, current mode control, and sophisticated feedback mechanisms to achieve superior performance characteristics including tight voltage regulation, rapid transient response, and enhanced efficiency across varying load conditions.

Choosing a high voltage flyback converter delivers numerous practical benefits that directly impact your operational efficiency and bottom line. First and foremost, these converters offer exceptional energy efficiency, converting electrical power with minimal waste heat generation. This efficiency translates to lower electricity costs over the product lifetime and reduces cooling requirements in your equipment installations. The compact physical footprint of the high voltage flyback converter means you can design smaller products or fit more functionality into existing spaces without compromising performance. This space savings becomes particularly valuable in applications where every cubic centimeter matters, such as portable medical devices or densely packed industrial control panels. The built-in electrical isolation between input and output circuits provides crucial safety advantages, protecting sensitive downstream components from voltage spikes and surges while simultaneously safeguarding operators from potential electrical hazards. This isolation feature eliminates the need for additional protective components, simplifying your overall system design and reducing total component costs. The high voltage flyback converter excels at producing multiple output voltages from a single input source, enabling you to power various subsystems with different voltage requirements without deploying multiple separate power supplies. This consolidation reduces your procurement complexity, inventory management burden, and installation labor. The wide input voltage range capability means the same converter design can operate reliably across different geographical regions with varying electrical standards, simplifying global product deployment and reducing the number of product variants you need to manufacture and stock. Rapid response to load changes ensures stable operation even when your application experiences sudden power demands, preventing voltage sags that could cause system malfunctions or data loss. The inherent short circuit protection characteristics provide built-in fault tolerance, automatically limiting current during abnormal conditions to prevent catastrophic failures and expensive equipment damage. Modern high voltage flyback converters incorporate sophisticated control mechanisms that maintain tight voltage regulation even as input voltage fluctuates or ambient temperature varies, ensuring consistent performance across diverse operating environments. The reduced electromagnetic interference generated by well-designed flyback converters simplifies compliance with regulatory standards and minimizes the risk of disrupting nearby sensitive electronics. Long service life and proven reliability mean fewer unexpected failures, reduced maintenance interventions, and lower total cost of ownership throughout your equipment operational lifespan. The flexibility to customize transformer designs allows optimization for specific application requirements, whether you prioritize maximum efficiency, smallest size, lowest cost, or specialized voltage ratios.

Latest News

May

Predictive Maintenance: Using IoT Sensors to Monitor High Voltage Module Health

Why High Voltage Modules Demand Predictive—Not Preventive—Maintenance High voltage modules face unique failure risks—insulation degradation, partial discharge, and thermal runaway—where traditional preventive maintenance con...

May

Certification Standards: Navigating UL, CE, and ISO Requirements for HV Modules

UL Certification: Safety and EMC Foundations for High Voltage Modules UL certification establishes critical safety benchmarks for high voltage modules in industrial and automotive applications. As a voluntary standard, it validates product reliabil...

Jun

Routine Cleaning and Preventive Maintenance for Powder Coating Spray Guns

Daily Cleaning: Essential Steps to Prevent Clogging and Cross-Contamination Thorough daily cleaning of your powder coating spray gun prevents costly downtime and finish defects. Contaminated equipment causes 37% of application failures, per industr...

Apr

How to select the right flyback transformer model and specification

Selecting the right flyback transformer model and specification is a critical engineering decision that directly impacts power supply performance, reliability, and cost-effectiveness in switched-mode power supply (SMPS) applications. Engineers and pr...

Get a Free Quote

Our representative will contact you soon.

Mobile/WhatsApp

Name

Company Name

Message

0/1000

Superior Voltage Transformation Capabilities for Demanding Applications

The high voltage flyback converter demonstrates remarkable proficiency in transforming modest input voltages into substantially elevated output voltages, a capability that proves indispensable across numerous industrial and commercial applications. This voltage multiplication occurs through carefully engineered transformer turns ratios combined with energy storage principles that distinguish flyback topology from other converter types. When the switching transistor conducts, electrical current flows through the primary winding, storing energy in the magnetic core rather than immediately transferring it to secondary windings. Upon transistor turn-off, this accumulated magnetic energy rapidly collapses, inducing a voltage in secondary windings that adds to the reflected input voltage, creating the characteristic high voltage output. This mechanism enables voltage step-up ratios exceeding ten to one, making the high voltage flyback converter ideal for applications like cathode ray tube displays, electrostatic precipitators, ion generators, and photomultiplier tube supplies. The transformer design flexibility inherent in flyback converters allows engineers to implement multiple secondary windings with different turns ratios, simultaneously generating several distinct output voltages with positive or negative polarities from one primary power source. This multi-output capability proves especially valuable in complex electronic systems requiring various voltage rails for different functional blocks, such as control logic circuits needing low voltages alongside interface circuits requiring higher voltages. The electrical isolation provided by the transformer barrier safeguards sensitive control electronics from high voltage sections while enabling safe voltage level shifting between different ground reference points within a system. Unlike boost converters that share common ground between input and output, the high voltage flyback converter maintains complete galvanic separation, a feature essential for safety-critical medical equipment and instrumentation applications. The voltage transformation process maintains efficiency even at high step-up ratios, avoiding the excessive losses that plague series-stacked voltage multiplier circuits. Advanced magnetic design techniques optimize core materials, winding configurations, and air gap dimensions to minimize parasitic effects and maximize power transfer efficiency throughout the operating range.

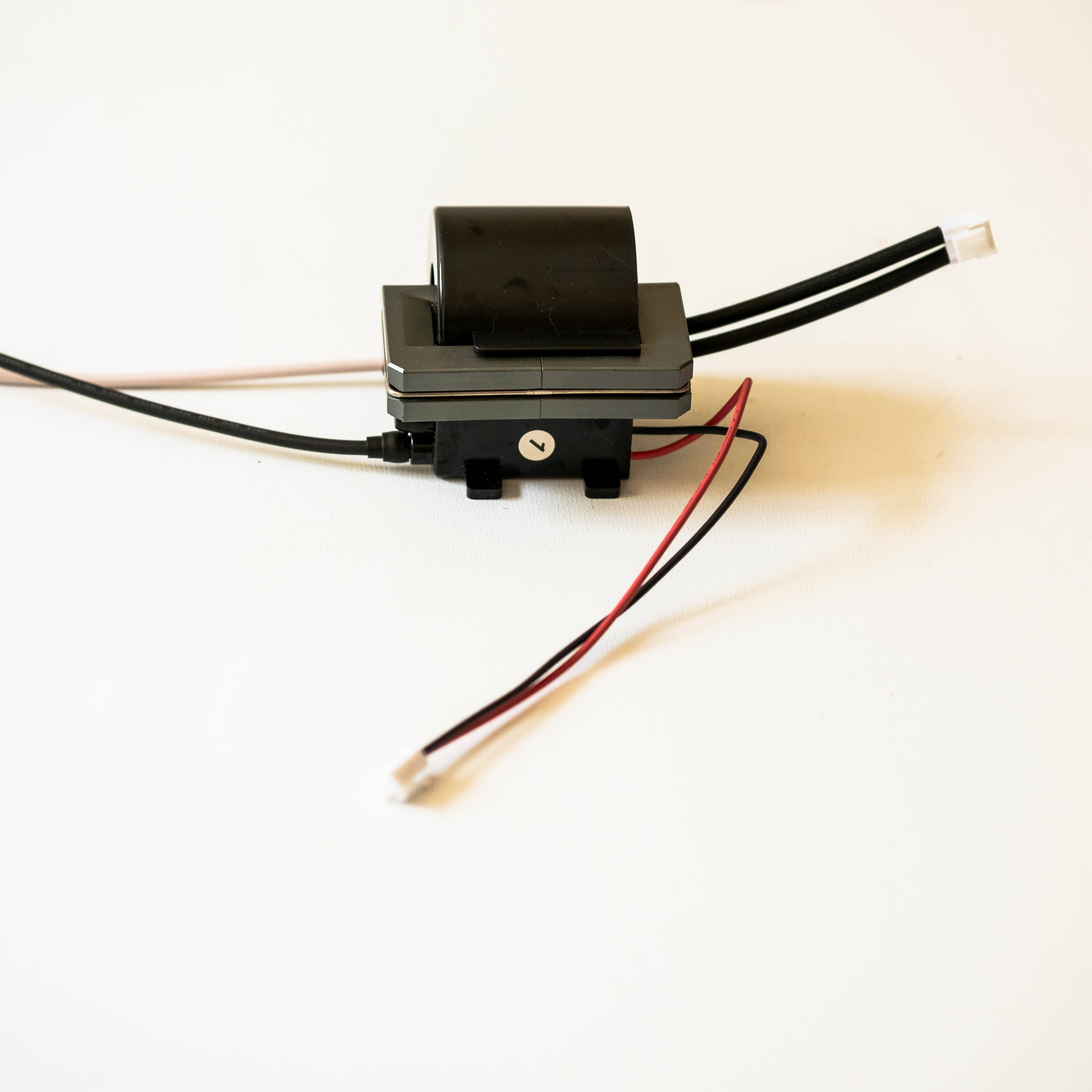

Compact Design Architecture Maximizing Space Utilization
