High Voltage Power Supply Using Flyback Transformer - Efficient Conversion Solutions

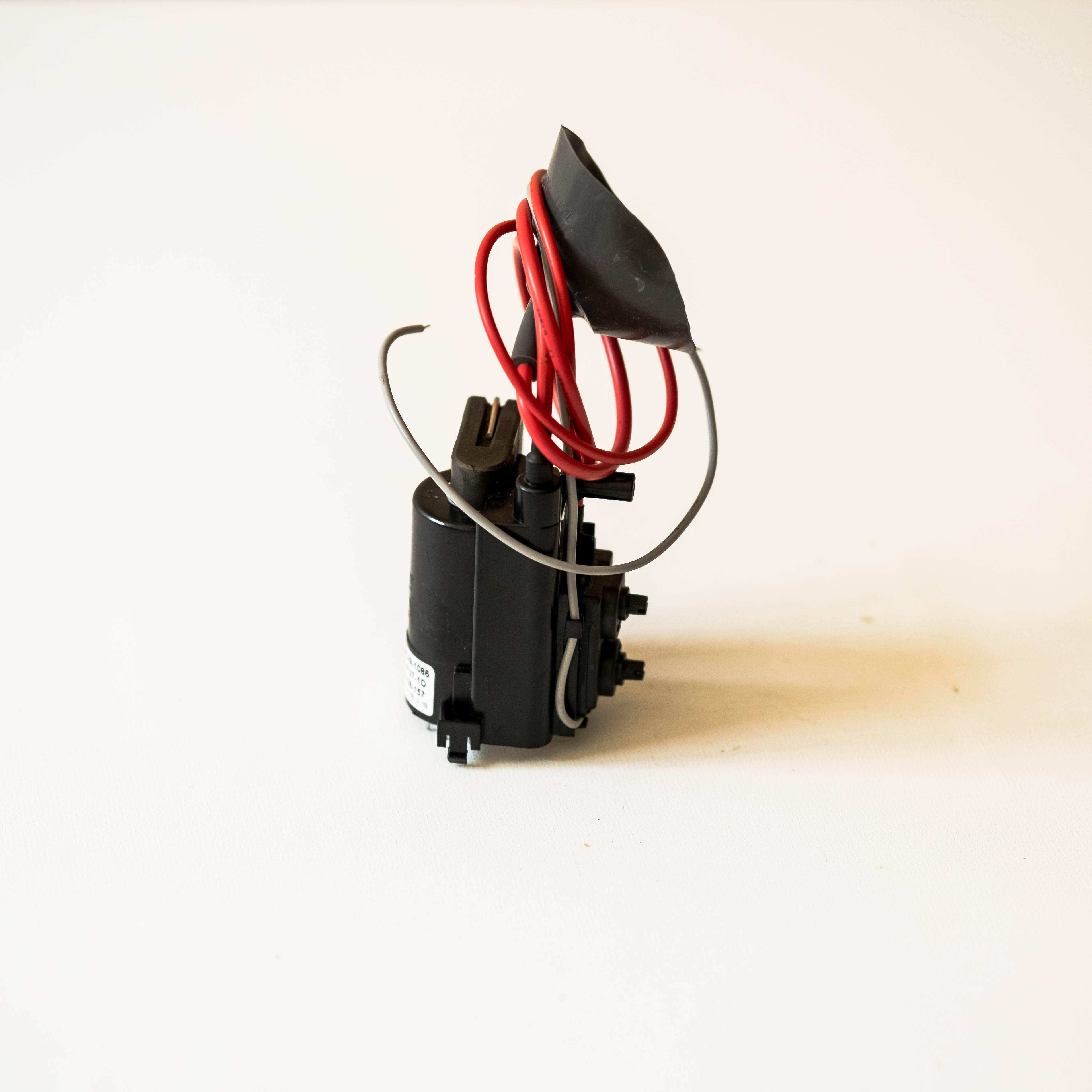

The high voltage power supply using flyback transformer employs a unique energy storage and transfer mechanism that fundamentally differentiates it from conventional transformer-based power supplies. Unlike traditional forward converters where energy transfers simultaneously from primary to secondary windings, the flyback topology stores energy in the transformer's magnetic field during one portion of the switching cycle and releases it during another distinct phase. This operational characteristic stems from the intentional air gap incorporated into the transformer's magnetic core structure. During the switch-on period, current flows through the primary winding, building up magnetic flux in the core and storing energy proportional to the inductance and current squared. The secondary circuit remains inactive during this phase due to the reverse-biased rectifier diode. When the switch opens, the magnetic field collapses rapidly, inducing voltage across both windings according to their turns ratio. The secondary voltage forward-biases the output rectifier, delivering stored energy to the load and output capacitors. This discontinuous energy transfer method provides several practical advantages for voltage conversion applications. The air gap prevents core saturation, enabling higher energy storage capacity within a given core volume compared to conventional transformers. This capability proves essential for high voltage applications where substantial energy must be transferred efficiently. The high voltage power supply using flyback transformer benefits from simplified magnetic design since the single magnetic component performs both energy storage and voltage transformation functions, reducing part counts and manufacturing complexity. The inherent voltage multiplication achieved through turns ratio adjustment allows dramatic voltage elevation from modest input levels, making this topology ideal for generating kilovolt-range outputs from standard low-voltage sources. Furthermore, the discontinuous current mode operation naturally limits inrush currents during startup and fault conditions, providing inherent protection for switching components and improving reliability. The energy storage mechanism also facilitates multiple isolated outputs with independent voltage levels by adding secondary windings, each with its own rectification and filtering circuitry. This flexibility accommodates complex system requirements without additional magnetic components. Control strategies for managing the energy transfer process have evolved significantly, with modern pulse-width modulation techniques and resonant switching methods enhancing efficiency and reducing electromagnetic emissions. The high voltage power supply using flyback transformer continues benefiting from technological advances in semiconductor devices, magnetic materials, and control integrated circuits, steadily improving performance parameters while maintaining the fundamental advantages of the proven flyback topology.

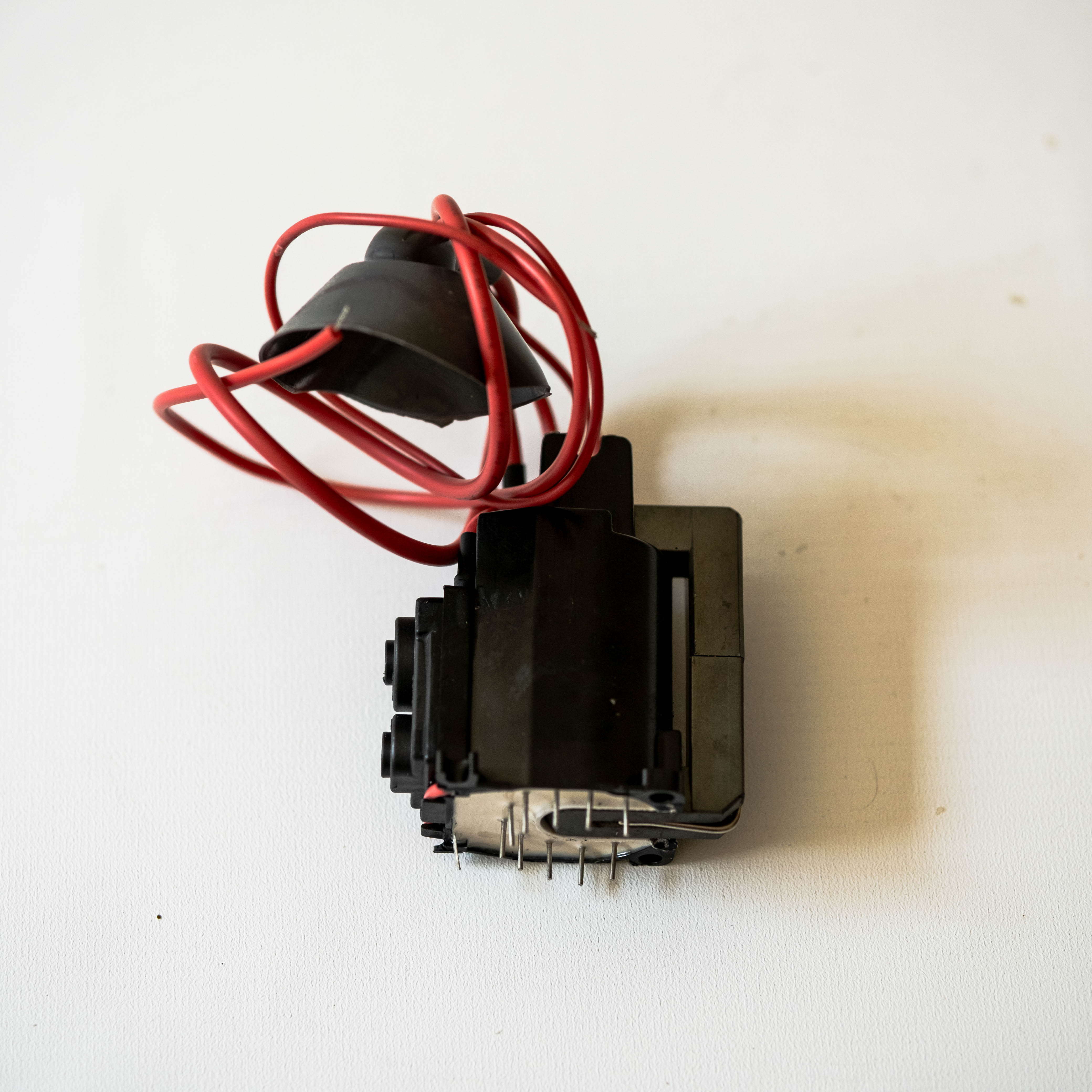

Safety considerations occupy a central position in power supply design, and the high voltage power supply using flyback transformer excels in providing robust galvanic isolation between input and output circuits. This electrical separation occurs through the magnetic coupling within the transformer structure rather than direct conductive pathways, creating an insurmountable barrier against fault currents and preventing ground loop issues that plague non-isolated designs. The isolation capability holds particular significance in applications involving human interaction, sensitive instrumentation, or connections between equipment operating at different ground potentials. Medical devices exemplify scenarios where patient safety depends absolutely on preventing any possible current path between mains electricity and body-contact surfaces. The high voltage power supply using flyback transformer meets stringent medical safety standards through reinforced insulation systems, properly specified creepage and clearance distances, and multiple layers of protection ensuring fault conditions cannot compromise patient safety. Laboratory instrumentation similarly benefits from isolation when measuring or stimulating systems that must remain electrically independent from test equipment power sources. Without proper isolation, measurement accuracy suffers from ground noise injection, and equipment damage risks increase substantially. The transformer-based isolation inherently provides high impedance between input and output, effectively blocking common-mode noise and differential interference that would otherwise corrupt signals or disrupt sensitive circuitry. Industrial environments present additional isolation challenges where equipment connects to varied ground systems, motor drives generate electrical noise, and lightning-induced surges threaten connected devices. The high voltage power supply using flyback transformer withstands these harsh conditions through its isolation barrier, which can be specified for kilovolt-level dielectric withstand voltages appropriate to the application environment. Regulatory compliance represents another practical dimension of isolation benefits, as international safety standards mandate specific isolation requirements for equipment categories. Meeting these standards through proven transformer isolation simplifies certification processes and facilitates market access across different regions. The physical construction of flyback transformers allows reliable implementation of safety isolation through careful attention to winding techniques, insulation materials, and bobbin designs that maintain separation under all operating conditions including thermal expansion, vibration, and aging effects. Modern manufacturing processes ensure consistent isolation performance across production volumes, with testing protocols verifying dielectric strength before products leave the factory. The high voltage power supply using flyback transformer thus provides not merely functional voltage conversion but comprehensive electrical protection that safeguards equipment investments, ensures regulatory compliance, and most importantly, protects human operators from potentially lethal electrical hazards.

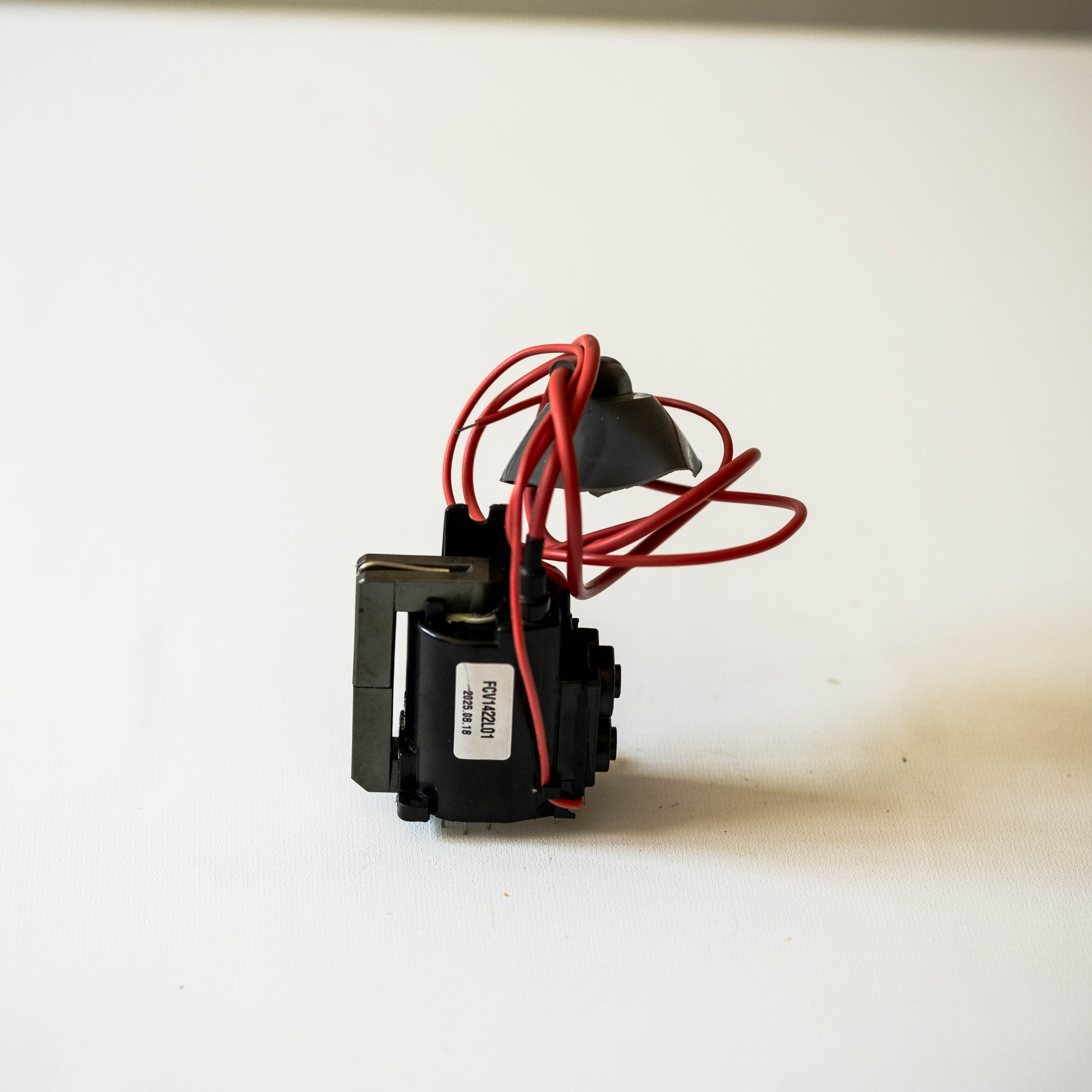

The high voltage power supply using flyback transformer demonstrates extraordinary design flexibility that enables customization for virtually any voltage conversion requirement within reasonable power ranges. This adaptability originates from the fundamental topology's accommodating nature regarding component selection, operating parameters, and configuration options. Engineers can tailor designs precisely to application specifications by adjusting switching frequencies, transformer turns ratios, magnetic core materials, switching device characteristics, and control algorithms. Switching frequency selection significantly impacts overall design tradeoffs, with higher frequencies enabling smaller magnetic components and capacitors, reducing size and weight, while lower frequencies may improve efficiency and reduce electromagnetic interference in noise-sensitive applications. The high voltage power supply using flyback transformer operates effectively across frequency ranges from tens of kilohertz to several megahertz, allowing designers to optimize for specific priorities. Transformer customization represents another dimension of flexibility, as turns ratios can be specified to achieve desired output voltages, and multiple secondary windings generate independent voltage rails from a single primary circuit. This multi-output capability proves invaluable in complex systems requiring various voltage levels for different subsystems, consolidating multiple discrete power supplies into one unified solution. Winding techniques, wire gauges, and insulation schemes can be adapted for particular voltage levels, current capacities, and isolation requirements. Core material selection influences efficiency, temperature rise, and saturation characteristics, with ferrite materials offering excellent high-frequency performance and powdered iron alternatives providing different permeability and loss profiles. The high voltage power supply using flyback transformer accommodates both continuous conduction mode and discontinuous conduction mode operation, each offering distinct advantages depending on load profiles and efficiency priorities. Continuous mode suits applications with relatively constant power demands, while discontinuous mode excels in variable load scenarios and simplifies compensation network design. Control methodologies present yet another flexibility dimension, with voltage-mode control, current-mode control, and resonant control techniques each bringing specific benefits. Feedback compensation can be tailored for desired transient response characteristics, balancing stability against dynamic performance requirements. Protection features integrate readily into flyback designs, including overvoltage protection, overcurrent limiting, thermal shutdown, and input undervoltage lockout, safeguarding both the power supply and connected equipment. The high voltage power supply using flyback transformer adapts easily to various input voltage ranges, accommodating universal mains inputs or specific battery chemistries as application demands dictate. Environmental considerations receive attention through component selection appropriate for temperature extremes, humidity exposure, altitude operation, and vibration resistance. This comprehensive adaptability ensures the high voltage power supply using flyback transformer remains relevant across industries and applications, from consumer electronics to aerospace systems, continuously evolving to meet emerging technological challenges while maintaining its fundamental architectural advantages.
