Flyback Transformer in TV: Complete Guide to Functions, Benefits & Applications

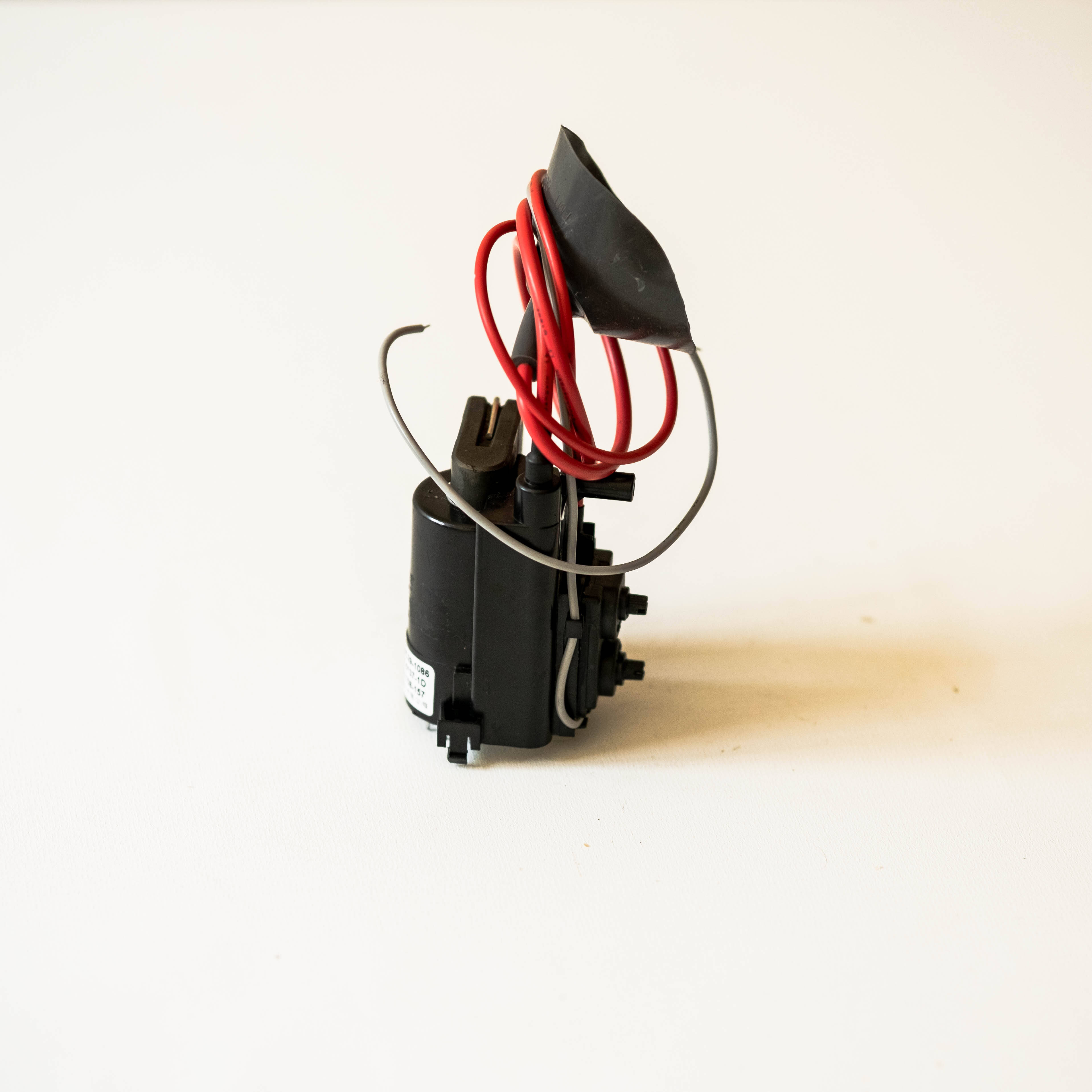

The flyback transformer in TV excels at generating the extraordinarily high voltages essential for creating sharp, bright, and detailed images on cathode ray tube displays. This capability represents one of the most important technical achievements in television engineering, enabling the acceleration of electron beams to velocities necessary for proper screen phosphor excitation. The flyback transformer in TV typically produces voltages between 15,000 and 30,000 volts, with some specialized applications requiring even higher outputs. This voltage generation occurs through a sophisticated process of magnetic energy storage and rapid release, creating voltage spikes that are then rectified and filtered to provide stable high-voltage DC power. The precision with which the flyback transformer in TV delivers these voltages directly impacts picture quality, affecting brightness uniformity, focus sharpness, and color accuracy. Modern designs incorporate feedback mechanisms that maintain voltage stability across varying load conditions and input power fluctuations, ensuring consistent picture quality regardless of broadcast content or viewing conditions. The high voltage capability of the flyback transformer in TV also enables proper functioning of the television's focus and screen grid systems, which work together to create the crisp images viewers expect. The focus voltage, typically one-quarter to one-third of the main anode voltage, precisely controls the electron beam diameter at the screen surface, while the screen voltage optimizes brightness and contrast. The flyback transformer in TV accomplishes all this voltage generation while maintaining electrical isolation between primary and secondary circuits, protecting low-voltage control electronics from potentially destructive high-voltage transients. This isolation also enhances user safety by containing high voltages within well-insulated secondary windings and associated components. The engineering sophistication of the flyback transformer in TV becomes apparent when considering the multiple simultaneous demands placed upon it, delivering precise voltages to numerous television subsystems while operating continuously at frequencies typically around 15,625 Hz for standard definition displays. The magnetic core materials used in the flyback transformer in TV, usually manganese-zinc or nickel-zinc ferrite compositions, provide optimal permeability and low core losses at these operating frequencies, contributing to overall efficiency and minimizing heat generation that could degrade component longevity or affect nearby circuits.

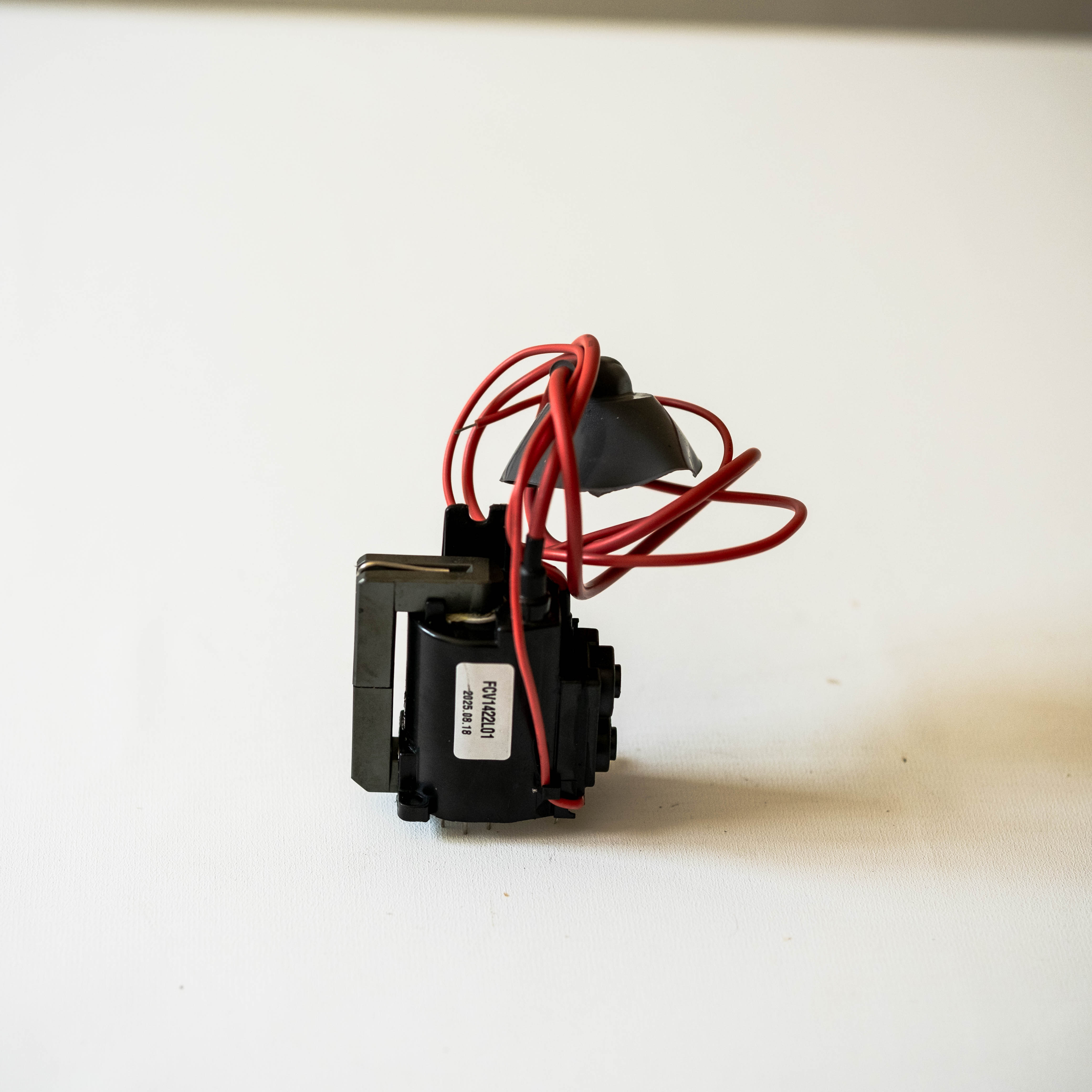

The flyback transformer in TV functions as a highly integrated power distribution hub, providing multiple voltage levels from a single compact component, which represents a significant engineering and economic advantage for television manufacturers and consumers alike. This multi-output capability eliminates the need for separate power supplies and transformers for each voltage requirement throughout the television chassis, dramatically simplifying overall design and reducing both component count and manufacturing costs. The flyback transformer in TV typically features numerous secondary windings, each carefully designed to produce specific voltage levels tailored to different circuit requirements. These outputs commonly include the ultra-high voltage for the picture tube anode, medium voltages ranging from several hundred to a few thousand volts for focus and screen grid electrodes, and lower voltages in the range of 12 to 200 volts for horizontal deflection circuits, audio amplifiers, and control systems. The space efficiency achieved by consolidating these functions into the flyback transformer in TV cannot be overstated. Television cabinets can be designed more compactly, reducing material costs and shipping expenses while appealing to consumers who prefer smaller, less obtrusive entertainment equipment. The reduced component count also improves overall system reliability, as fewer discrete parts mean fewer potential failure points and simpler troubleshooting when problems do occur. The flyback transformer in TV accomplishes this multi-output functionality through careful magnetic circuit design and precise winding techniques. Each secondary winding is positioned and insulated according to its voltage level, with high-voltage windings receiving special attention to prevent electrical breakdown. The turns ratios between primary and various secondary windings are calculated to produce exact voltage relationships, accounting for factors like winding resistance, leakage inductance, and load characteristics. Advanced flyback transformer in TV designs incorporate voltage regulation features that maintain stable outputs despite variations in input power or load demands. Some implementations use additional windings for feedback sensing, enabling closed-loop control systems that adjust primary drive signals to compensate for changing conditions. This regulation capability ensures that all television circuits receive proper operating voltages, optimizing performance and extending component life. The thermal management aspects of the flyback transformer in TV also benefit from this integrated approach, as a single component's heat dissipation is easier to manage than multiple separate power supplies distributed throughout the chassis.

The flyback transformer in TV has earned a reputation for exceptional reliability and longevity, often operating flawlessly for decades under demanding continuous-duty conditions that characterize typical television usage patterns. This remarkable durability stems from mature design principles, quality manufacturing processes, and inherent operating characteristics that minimize stress on component materials. The flyback transformer in TV typically represents one of the most reliable components in the entire television system, frequently outlasting semiconductors, capacitors, and other active components. The robust construction of the flyback transformer in TV contributes significantly to its impressive service life. The ferrite core material exhibits excellent stability across wide temperature ranges and maintains its magnetic properties over many years of operation. Winding wires are carefully selected for their electrical and mechanical properties, with proper insulation ratings ensuring long-term voltage withstand capability. Modern flyback transformer in TV units incorporate epoxy encapsulation or potting compounds that protect internal components from moisture, dust, and mechanical vibration while enhancing thermal conductivity for better heat dissipation. The operating principle of the flyback transformer in TV inherently promotes reliability by distributing electrical and thermal stresses across the component rather than concentrating them in vulnerable areas. The switching frequency operation, while demanding, occurs at rates where magnetic core materials perform optimally, avoiding both the excessive core losses of higher frequencies and the large component sizes required for lower frequency operation. The flyback transformer in TV design includes generous safety margins in voltage ratings, current handling capacity, and thermal limits, ensuring that normal operating conditions impose only moderate stress levels that components can sustain indefinitely. Quality control processes in flyback transformer in TV manufacturing include rigorous testing procedures such as high-potential testing to verify insulation integrity, partial discharge testing to detect incipient insulation weaknesses, and thermal cycling tests to confirm mechanical stability across temperature extremes. These comprehensive testing protocols ensure that only components meeting strict reliability standards reach the market. The field performance record of the flyback transformer in TV demonstrates the effectiveness of these design and manufacturing practices, with failure rates typically measuring in the low single-digit percentages even after many years of service. When failures do occur, they often result from external factors such as lightning strikes or severe power line disturbances rather than inherent component weaknesses. The maintainability of systems using the flyback transformer in TV represents another reliability advantage, as technicians can quickly diagnose and replace failed units, minimizing downtime and repair costs while restoring full television functionality with proven, field-tested replacement components.
