CRT TV Transformer: Complete Guide to High-Voltage Power Solutions for Cathode Ray Tube Displays

The crt tv transformer excels in its ability to generate and regulate the extremely high voltages required for cathode ray tube operation, a feat that demands sophisticated engineering and premium materials. This high voltage generation capability represents the cornerstone function that enables the electron gun to accelerate electrons to sufficient velocities for creating visible light when striking the phosphor-coated screen. The transformer achieves this through a carefully calculated turns ratio between primary and secondary windings, where thousands of turns in the high-voltage secondary coil step up the input voltage to levels exceeding twenty thousand volts. The precision winding techniques employed during manufacture ensure uniform voltage distribution and minimize the risk of internal arcing or insulation breakdown that could compromise performance or safety. Quality crt tv transformer designs incorporate special high-voltage insulation materials such as polyester films, epoxy resins, and ceramic spacers that maintain their dielectric properties even under sustained exposure to extreme electrical stress and elevated temperatures. The voltage regulation characteristics remain remarkably stable across varying load conditions, ensuring consistent electron beam intensity and therefore uniform screen brightness regardless of image content complexity or power line voltage variations. This stability directly translates to superior picture quality with no flickering, brightness pulsation, or focus deterioration that would detract from the viewing experience. The high voltage section of the crt tv transformer also generates the focus voltage, a precisely controlled intermediate voltage level that shapes the electron beam to achieve sharp image detail across the entire screen surface. Engineers design these transformers with careful attention to parasitic capacitance and inductance, minimizing energy losses and unwanted resonances that could introduce noise or instability into the high voltage supply. The physical spacing between high voltage terminals and grounded components follows strict safety margins established by international electrical codes, protecting service technicians and end users from accidental contact with dangerous potentials. Modern crt tv transformer designs incorporate corona rings and voltage grading techniques that distribute electrical stress evenly, preventing localized field concentrations that accelerate insulation aging and eventual failure.

The crt tv transformer distinguishes itself through its sophisticated multi-voltage output architecture, simultaneously providing numerous precisely regulated voltage levels that power different functional blocks within the television system. This comprehensive power delivery approach eliminates the need for multiple separate transformers, reducing overall system cost, weight, and complexity while improving reliability by minimizing interconnections and potential failure points. The typical crt tv transformer features a main high voltage winding for the cathode ray tube anode supply, plus several auxiliary secondary windings that generate voltages ranging from five volts for logic circuits up to several hundred volts for video amplification stages. Each secondary winding incorporates specific turn counts and wire gauges calculated to deliver its designated voltage and current capacity without exceeding safe temperature limits or causing excessive voltage drops under load. The horizontal deflection supply represents one critical output, providing the substantial current pulses needed to drive the deflection yoke's horizontal coils, which sweep the electron beam rapidly across the screen thousands of times per second. Another essential output powers the vertical deflection system, operating at a lower frequency but requiring precise linearity to ensure geometric accuracy and prevent image distortion. The crt tv transformer also generates filament power for heating the cathode in the electron gun, a low voltage but relatively high current requirement that demands adequate wire thickness to minimize resistive losses and voltage drop. Some designs incorporate regulated outputs with feedback circuits that sense output voltage levels and adjust the transformer's magnetic characteristics to compensate for load variations or input voltage changes. This active regulation enhances performance consistency and extends component life by preventing overvoltage conditions that stress downstream circuits. The electrical isolation between different secondary windings provides important safety benefits and reduces the potential for ground loops or unwanted signal coupling between different circuit sections. Engineers carefully control the phase relationships between different outputs, ensuring that voltages reach their peak values at appropriate times relative to the horizontal and vertical scanning cycles for optimal system synchronization. The power handling capacity of each winding reflects detailed analysis of worst-case operating scenarios, including maximum brightness scenes and demanding signal content that exercises all deflection and video amplification circuits simultaneously.

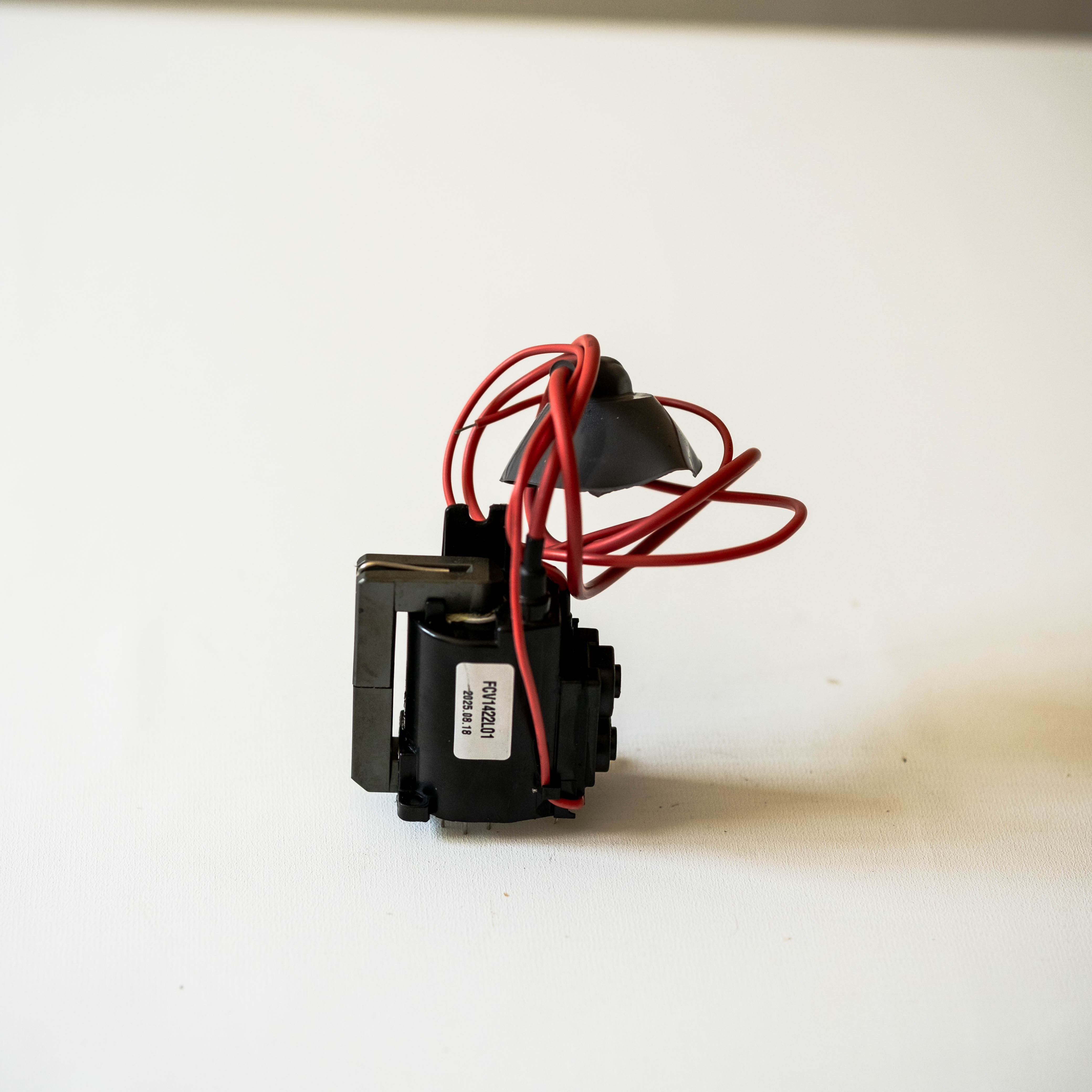

The crt tv transformer incorporates multiple layers of safety and protection mechanisms that safeguard both the television system and users from electrical hazards, overload conditions, and component failures. These protective features represent critical design elements that distinguish quality transformers from basic alternatives, providing reliability and longevity that justify the investment in premium components. Thermal protection constitutes the first line of defense, with temperature-sensitive cutoff devices embedded within the transformer windings that interrupt power flow if internal temperatures exceed safe thresholds due to overload, inadequate ventilation, or component degradation. This thermal monitoring prevents insulation damage, winding burnout, and potential fire hazards that could result from sustained operation under fault conditions. The crt tv transformer design includes current limiting characteristics inherent to its magnetic properties, where the core material saturates under excessive load conditions, naturally restricting current flow and preventing damage to both the transformer and connected circuits. Insulation coordination represents another crucial safety aspect, with voltage ratings for all insulating materials selected to provide substantial safety margins above normal operating voltages, accounting for transient overvoltages from lightning strikes or power system switching events. The physical construction employs reinforced insulation between primary and secondary windings, typically consisting of multiple layers of different materials that provide redundant protection even if one layer becomes compromised. High voltage lead terminations utilize specialized high-voltage cable with thick silicone or rubber insulation, secured with strain relief mechanisms that prevent wire fatigue or insulation damage from mechanical stress. Many crt tv transformer designs incorporate arc suppression features such as snubber circuits or specially shaped magnetic gaps that limit voltage spike amplitudes during switching transitions, protecting semiconductor components in connected circuits from overvoltage destruction. The grounding strategy ensures that all exposed metallic parts maintain earth potential, preventing dangerous voltage accumulation on the transformer chassis that could create shock hazards if touched while the television operates. Quality control testing during manufacture subjects every crt tv transformer to high-potential tests that apply voltages significantly exceeding normal operating levels, verifying insulation integrity and identifying any manufacturing defects before units reach customers. Electromagnetic shielding techniques minimize radiated interference that could disrupt sensitive signal processing circuits or violate electromagnetic compatibility regulations governing consumer electronic products. The mechanical mounting design incorporates vibration isolation features that reduce acoustic noise transmission to the television cabinet while maintaining secure physical attachment that prevents movement under electromagnetic forces generated during operation.
