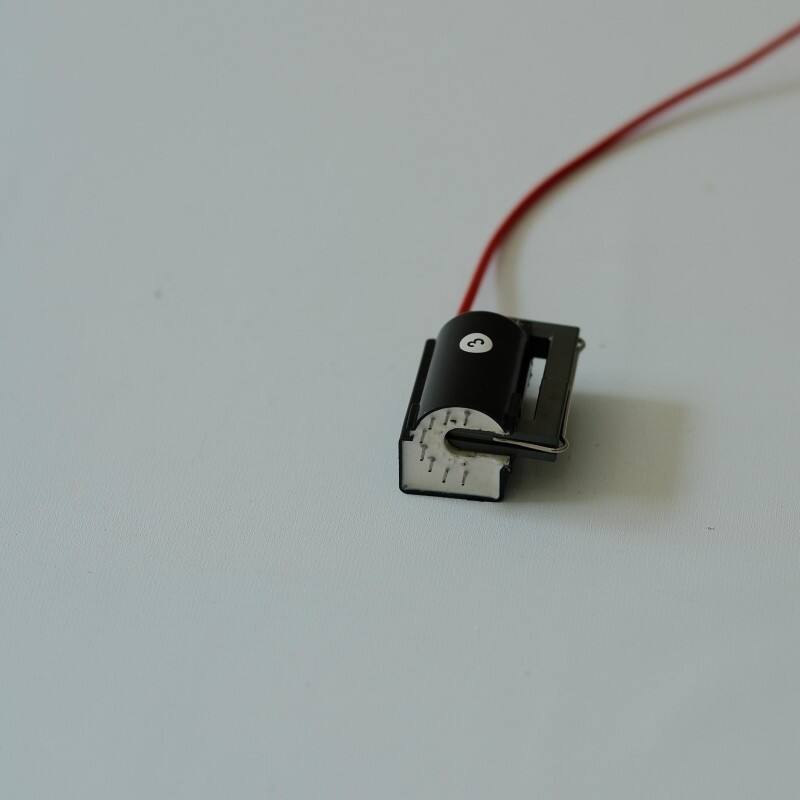

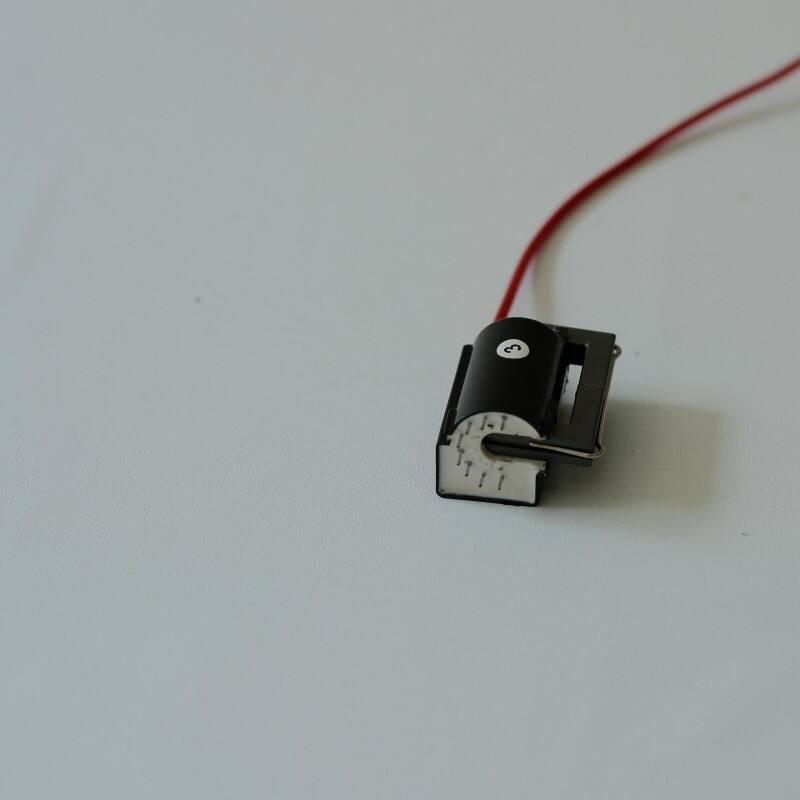

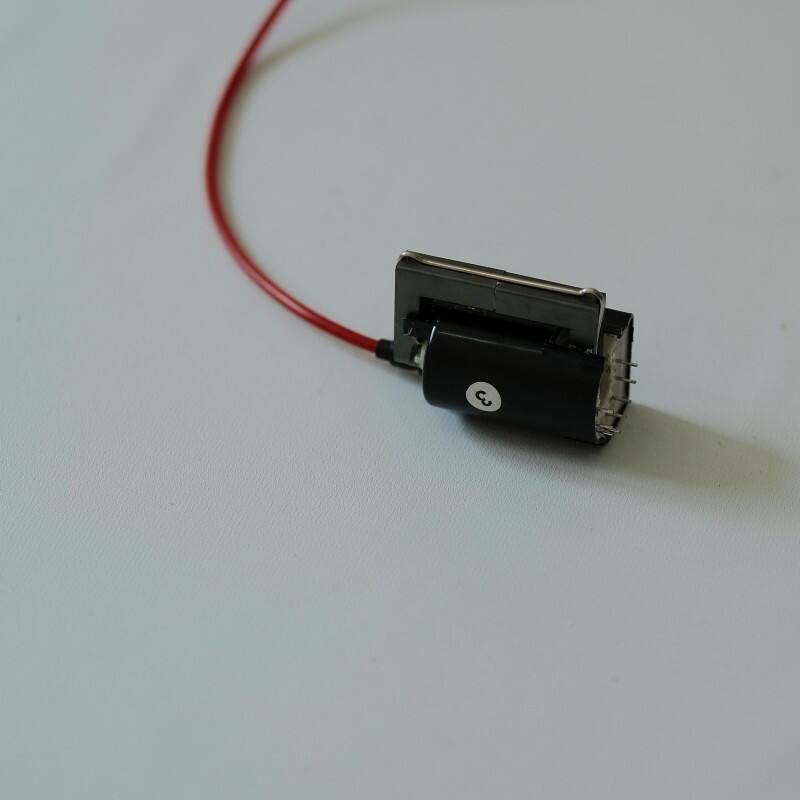

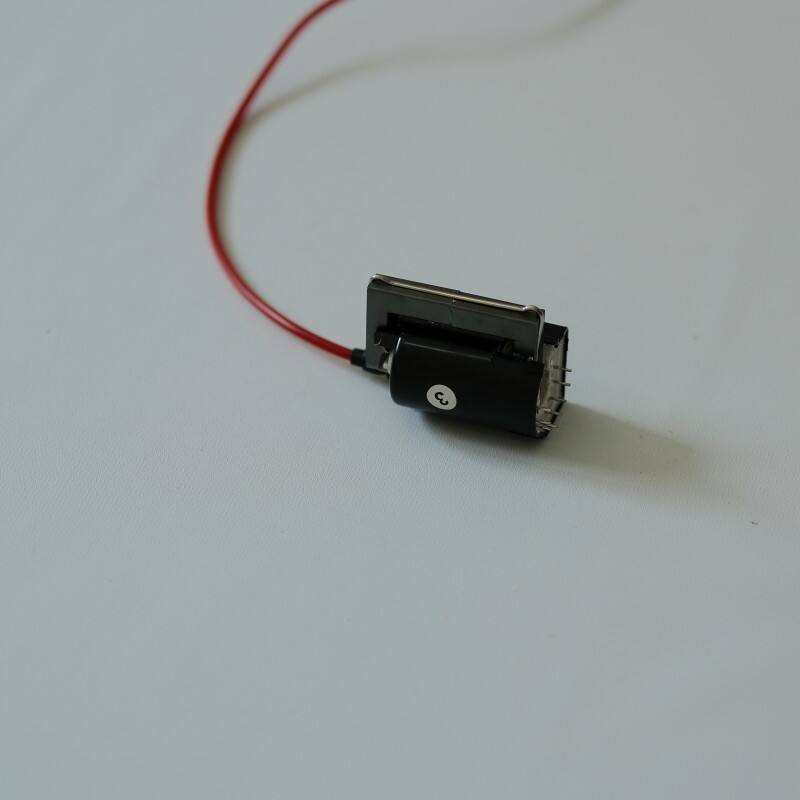

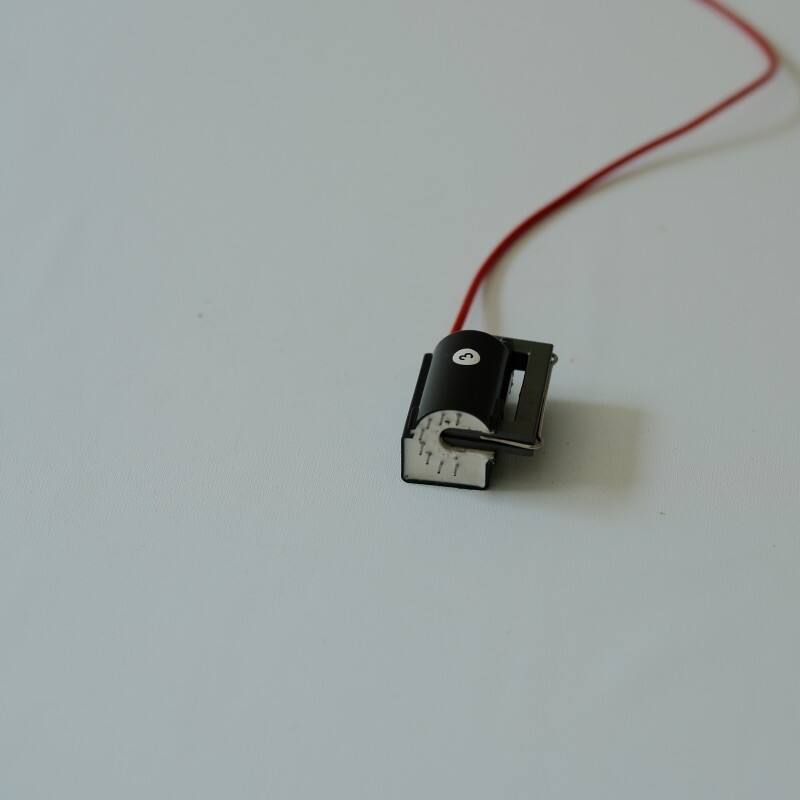

80W High Voltage Transformer

Description

Our high-voltage power module serves as the core component for modern kitchen fume purification systems, designed to deliver unmatched performance, safety, and reliability through careful material selection and innovative engineering.

1. Superior Material Selection for Maximum Safety & Durability

• Flame-Retardant PPO Housing: We adhere to using Polyphenylene Oxide (PPO) for the product housing— a premium engineering plastic selected due to its exceptional properties. This dedication directly results in improved high-temperature resistance and operational safety.

• Exceptional Electrical Insulation: PPO boasts one of the lowest dielectric constants and dissipation factors among all engineering plastics. Importantly, these electrical properties remain stable across an extensive range of temperatures and humidity levels, making it an ideal choice for applications spanning low-, medium-, and high-frequency electric fields. This inherent stability ensures consistent insulation, which is a critical factor for high-voltage components.

• Outstanding Thermal Stability: With a heat deflection temperature over 190°C and a brittle point as low as -170°C, PPO ensures our housing maintains its structural integrity and dimensional stability even under extreme operating conditions. The adoption of PPO is a fundamental guarantee of the product’s long-term reliability, flame retardancy, and resistance to thermal deformation.

2. High-Voltage Cables with Exceptional Chemical Resistance

• Teflon Insulation: For the critical high-voltage cables, Teflon (PTFE) is our selected material. It provides superior resistance to oil, strong acids, alkalis, and oxidants, and its non-hygroscopic characteristic (not absorbing moisture) is vital for preventing current leakage and tracking. This choice substantially boosts the module’s overall insulation strength and high-voltage endurance, ensuring stable performance in harsh kitchen environments.

3. User-Centric Design for Effortless Installation

• Revolutionized Mounting System: Moving away from the messy and time-consuming tradition of adhesive fixation, a streamlined bolt-on mounting system via integrated fixing holes has been developed. This innovation simplifies installation for our clients, drastically reduces installation time, and completely does away with the waiting period required for adhesive curing, leading to faster commissioning and lower overall labor costs.

4. Structural Innovation for Enhanced Performance

• Integrated Monobloc Design: Our groundbreaking integrated housing structure is a significant advancement, meticulously designed to deliver superior protection and insulation at the high-voltage series connection points.

• Eliminates Arcing & Boosts Power: This robust design effectively mitigates the risk of arcing or sparking at these critical junctions. Moreover, the compact and efficient layout not only reduces the unit’s overall footprint but also allows the module’s power output and operational voltage to be increased, delivering higher performance from a smaller package.

Specifications

Applications
· Large-Scale Industrial Kitchens
· Mobile Food Vending Carts

Commercial kitchen oil fume purification starts with a strong "heart" – the high-voltage electrostatic power supply – and its most critical part: the High-Voltage Generator (HV Generator).

Yangzhou Sanxing Technology CO.,LTD is a professional HV Generator manufacturer focused on delivering reliability, efficiency, and value to global clients. Our HV Generators work seamlessly with power supply systems to provide top-tier oil fume adsorption and purification – perfect for industrial kitchens and mobile vending carts.

Step 1: Precision Installation – Fast, Easy, and Secure

Our HV Generators are designed for compatibility and hassle-free setup – get your system up and running in no time.

1. Positioning & Securing: Dedicated mounting spots (standard brackets/screw holes) in power supply enclosures pair with our compact, standardized HV Generators. Vibration-resistant fit – no loose connections, no extra work.

2. Electrical Connections:
· Input (Low-Voltage Side): 12V/24V DC power + control signals – clear labels + fool-proof design = no wiring errors.
· Output (High-Voltage Side): High-quality silicone rubber cables (high-voltage/high-temperature/flame-resistant) connect to the purifier’s anode – safe, lossless energy transfer.

3. Insulation & Protection: Sealed in the enclosure – dust-proof, moisture-proof, and leak-proof. Safe, reliable operation in any condition.

Now you have an "energy core" delivering 10,000V–20,000V ultra-high voltage – ready to power your purification system.

Step 2: Synergistic Operation – Powerful, Efficient Purification

Power on, and our HV Generator + power supply system deliver a three-step purification process that works:

1. Energy Conversion: 220V AC → stable low-voltage DC → boosted to 10,000V–20,000V DC negative high voltage (via high-frequency oscillation/step-up transformer/voltage multiplier rectification).

2. Electrostatic Field Formation: Intense field between anodes and grounded cathodes – traps oil mist particles.

3. Three-Step Purification:
· Ionization: Particles gain negative charge – targeted.
· Adsorption: Coulomb force pulls particles to cathode plates – fast, thorough.
· Deposition & Collection: Oil droplets merge and drain – clean, compliant, and easy to maintain.

FAQ

Q:How long does production and delivery take?
A:The production cycle for standard parameters typically ranges from 4 to 5 days, while customized products may take up to 10 days. Generally, the logistics time for international shipments is between one and two weeks.

Q:Can I request custom designs or sizes?
A:Certainly. We can manufacture products according to the parameters you provide. Regarding the dimensions, we will definitely meet your requirements to the best of our ability. If the subsequent order volume is substantial, we can offer the service of creating a dedicated mold for your specified products at our own expense.

Q:What is the fastest way to contact you?
A:WeChat APP is the fastest way to contact me,my ID is ppxs0712,and you can also send me email,I will check it everyday. My phone number is +8618168269966,and my email is [email protected].

Q:What are your shipping terms?
A:Normally, the volume of our goods is not very large. For international shipments, we do not cover the shipping costs. Usually, the shipping fees are calculated based on the weight and volume of the products. According to our past experience, the shipping costs will not be very high.
