Flyback Transformer Input Voltage: Complete Guide to Specifications, Benefits and Applications

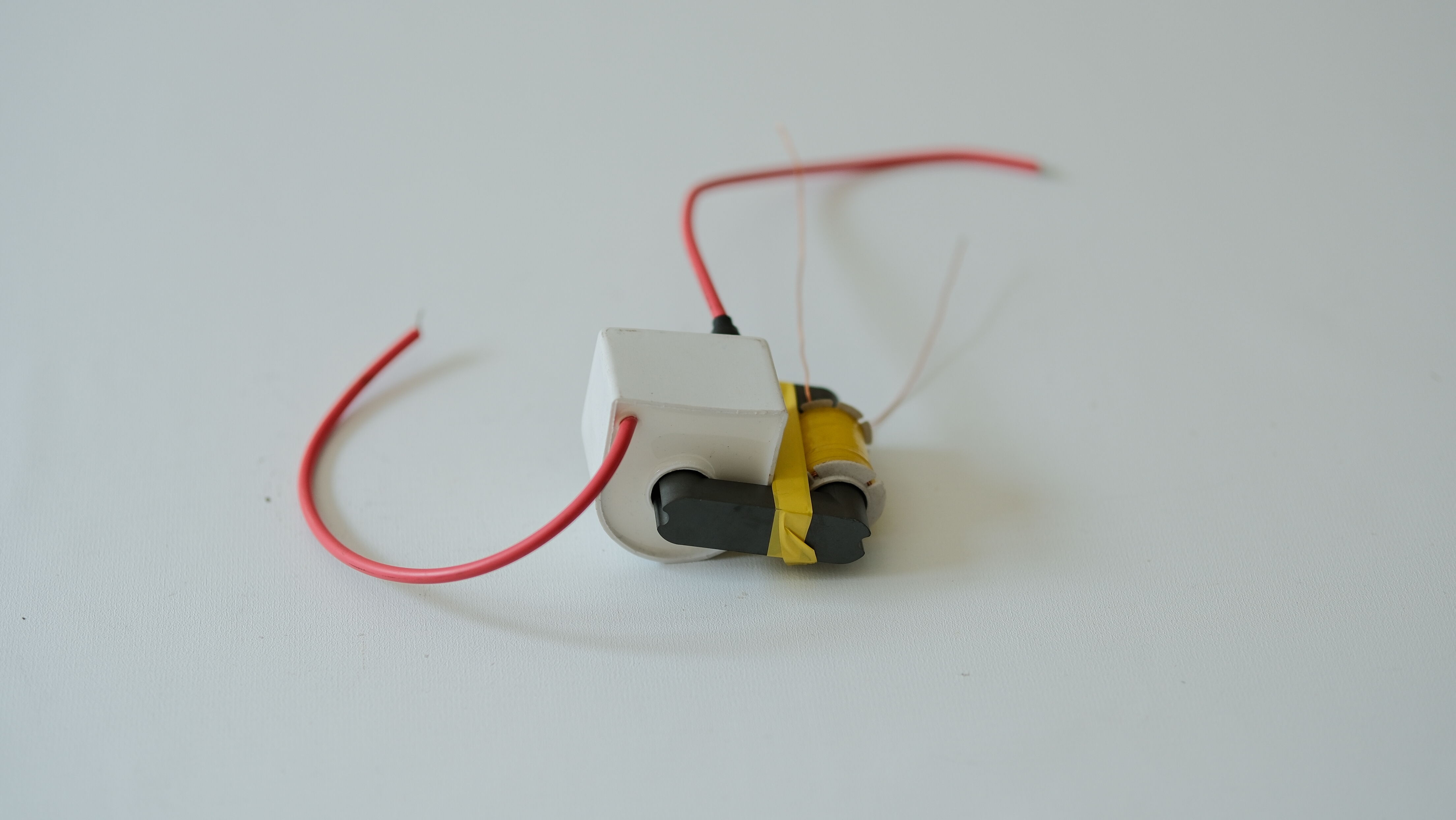

The wide input voltage range capability of flyback transformer designs represents one of the most valuable features for modern power supply applications, offering unprecedented flexibility and market adaptability. This characteristic allows a single flyback transformer input voltage design to accommodate dramatically different power sources without requiring hardware modifications or component changes. In practical terms, a well-designed flyback converter can accept input voltages spanning from 85VAC to 265VAC after rectification, translating to approximately 120VDC to 375VDC on the DC bus. This remarkable range covers virtually all global AC mains voltages, including the 110V standard common in North America and the 230V standard prevalent throughout Europe, Asia, and other regions. For manufacturers, this universality eliminates the need to develop separate product variants for different geographical markets, dramatically reducing engineering resources, tooling costs, and inventory management complexity. The technical implementation of wide input voltage range capability relies on careful design of the flyback transformer input voltage parameters and associated control circuitry. The transformer turns ratio must be optimized to maintain proper operation at both voltage extremes, while the switching controller adjusts duty cycle dynamically to compensate for input variations. Modern integrated circuits designed for flyback applications incorporate sophisticated feedback mechanisms that maintain tight output voltage regulation regardless of input fluctuations. This adaptability extends beyond geographical voltage differences to accommodate real-world power quality issues. Electrical grids worldwide experience voltage sags, surges, and variations that can impact sensitive electronics. A flyback transformer input voltage design with wide range capability continues operating reliably through these disturbances, providing stable output power even when input conditions are far from ideal. This resilience proves particularly valuable in industrial environments, developing markets with unstable power infrastructure, and applications powered by renewable energy sources where input voltage naturally varies. The commercial advantages extend to simplified global product launches and reduced certification complexity. Rather than submitting multiple product variants for safety and electromagnetic compatibility testing in different regions, manufacturers can certify a single universal input design. This streamlined approach accelerates market entry, reduces certification costs, and simplifies ongoing compliance management. Distribution channels also benefit from handling fewer product variations, reducing the likelihood of shipping incorrect voltage-specific models to customers. From an end-user perspective, wide input voltage range capability in flyback transformer designs enhances convenience and equipment longevity. Consumers can confidently use the same device when traveling internationally without worrying about voltage compatibility or carrying bulky voltage converters. Business users deploying equipment across multinational operations avoid the complications of managing region-specific power supplies, simplifying procurement and maintenance procedures while reducing spare parts inventory requirements.

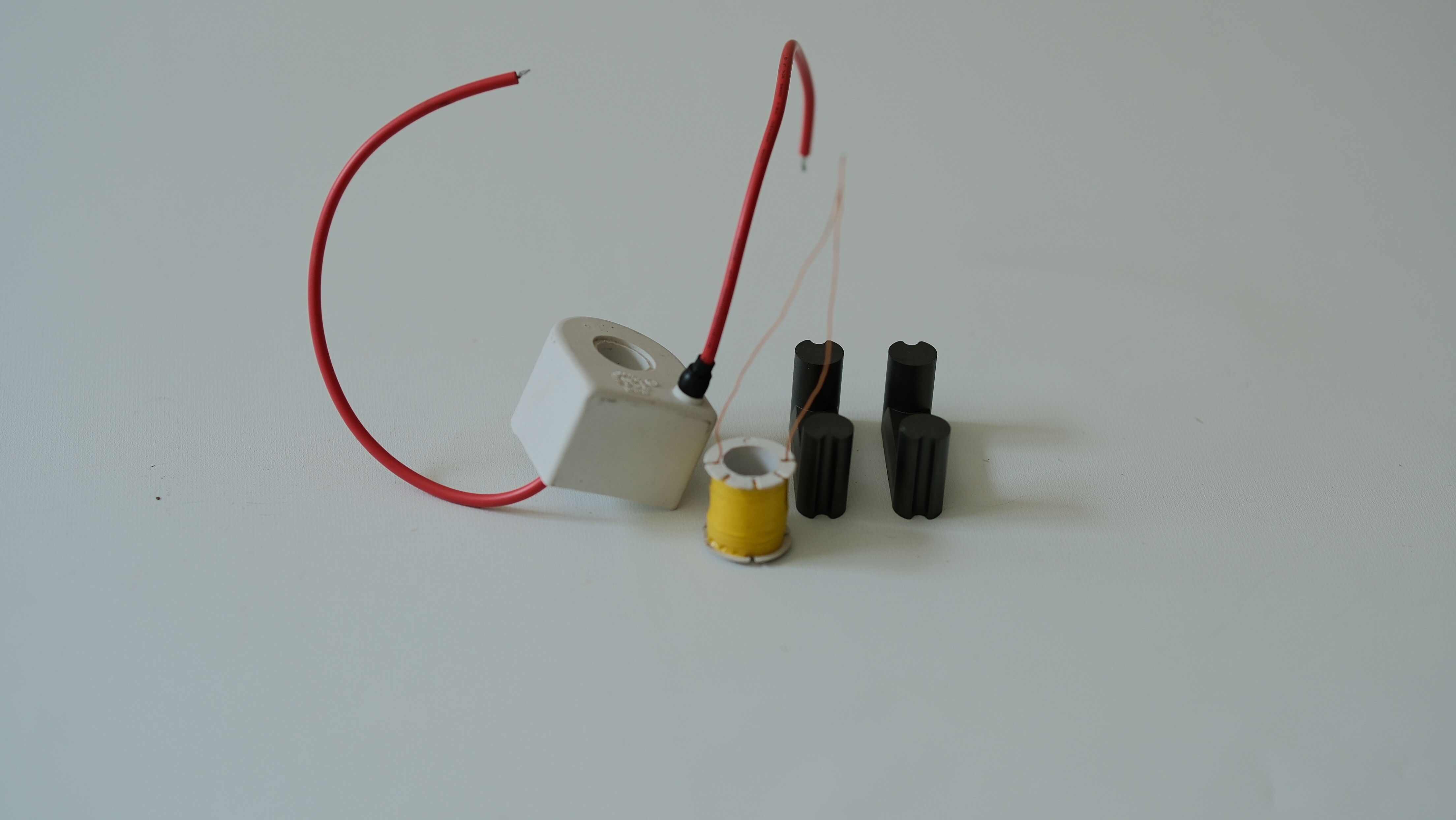

The electrical isolation provided by flyback transformer input voltage designs constitutes a fundamental safety feature that protects both equipment and users while enabling superior performance in demanding applications. Unlike non-isolated converter topologies where input and output grounds share common connections, flyback transformers establish complete galvanic isolation between primary and secondary circuits through magnetic coupling alone. This physical separation creates a protective barrier that prevents dangerous voltages from reaching output circuits and connected devices, fulfilling critical safety requirements across consumer, industrial, and medical applications. The isolation barrier created by the flyback transformer input voltage design typically withstands test voltages of 3000VAC or higher for one minute, demonstrating robust dielectric strength that protects against electrical faults. This isolation capability becomes essential when converting hazardous high voltages from AC mains into safe low voltages for sensitive electronics. Should a fault occur in the primary circuit, such as insulation breakdown or component failure, the isolation barrier prevents this fault from propagating to the output, protecting downstream equipment and preventing electrical shock hazards. Regulatory agencies worldwide mandate specific isolation requirements for equipment connected to AC mains, and flyback transformer input voltage designs inherently meet these stringent standards when properly implemented. Compliance with international safety standards including IEC 60950, UL 60950, and their successors becomes straightforward with appropriate transformer construction, insulation materials, and creepage distances. This compliance facilitates product certifications and market access across global regions, representing significant commercial value for manufacturers. Medical applications particularly benefit from the isolation characteristics of flyback transformer input voltage configurations. Healthcare equipment often contacts patients directly or operates in proximity to sensitive medical procedures, demanding the highest safety standards. The isolation provided by flyback designs creates the necessary separation between potentially lethal mains voltages and patient-connected circuits, meeting requirements for Type B, Type BF, or Type CF medical electrical equipment classifications. This protection proves literally life-saving in medical environments where patient safety cannot be compromised. Beyond safety considerations, the isolation inherent in flyback transformer input voltage designs delivers important performance advantages. Ground loops, which cause noise and interference problems in electronic systems, are eliminated when input and output grounds remain separate. This isolation reduces electromagnetic interference susceptibility and emission, improving signal integrity in sensitive applications such as audio equipment, instrumentation, and communication devices. The noise immunity provided by isolation proves particularly valuable in industrial environments where electrical noise from motors, switches, and other equipment can disrupt non-isolated power supplies. The flexibility to reference output voltages independently from input ground opens new design possibilities. Output voltages can float at arbitrary potentials relative to input, enabling applications such as high-side gate drivers for power semiconductors, isolated sensor interfaces, and voltage level shifting between incompatible systems. This versatility makes flyback transformer input voltage designs indispensable in complex electronic systems requiring multiple isolated power domains.

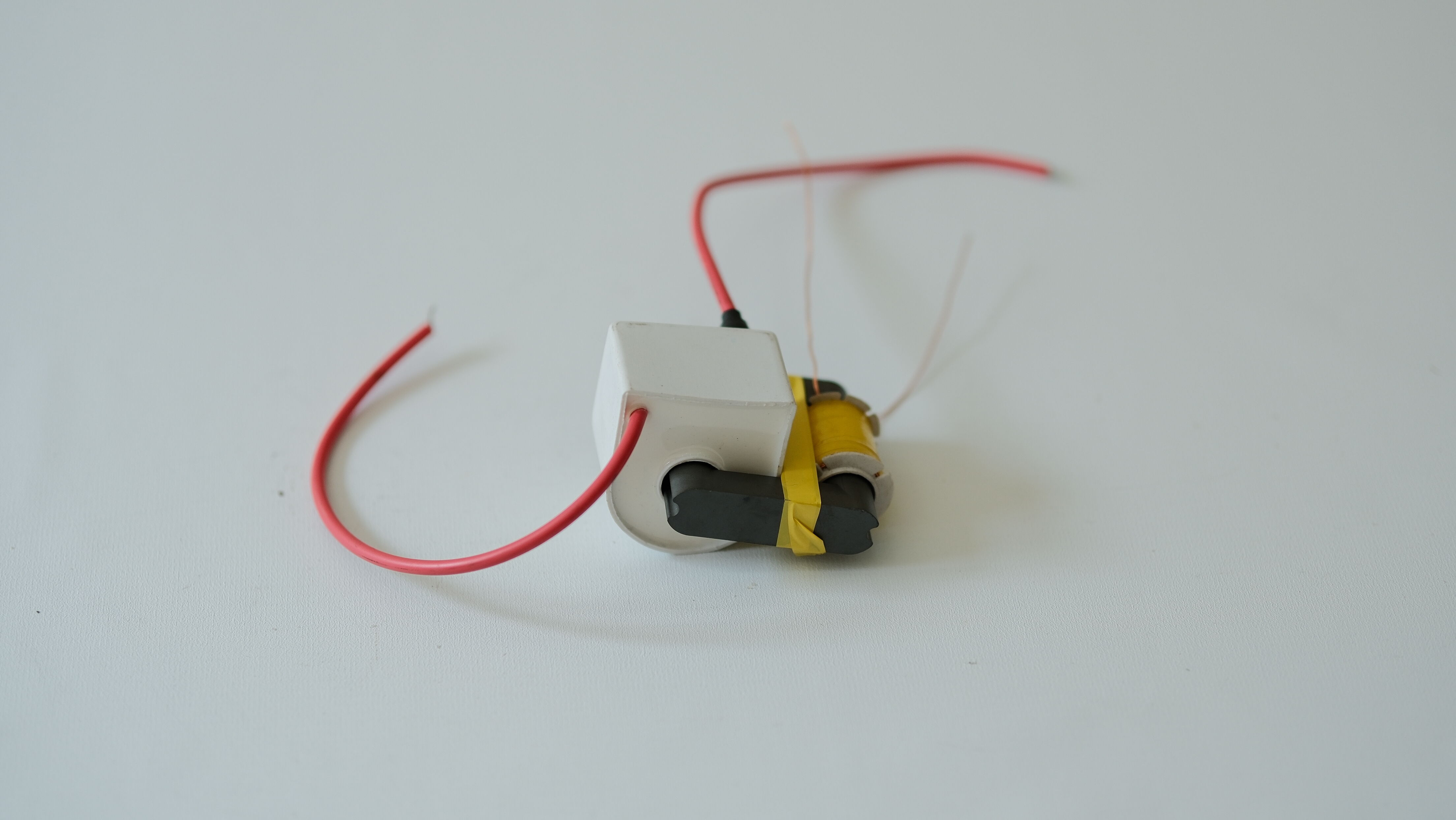

The compact design achievable with flyback transformer input voltage implementations represents a critical advantage in an era where electronic devices continually shrink while functionality expands. Unlike many alternative power conversion topologies that require separate magnetic components for energy storage and transformation, the flyback design elegantly combines both functions within a single transformer. This integration fundamentally reduces component count and circuit board area compared to topologies such as forward converters or push-pull configurations that need both a transformer and an output inductor. For product designers facing relentless pressure to reduce device dimensions, the space efficiency of flyback transformer input voltage solutions directly enables thinner smartphones, lighter laptop adapters, and more compact industrial controls. The physical consolidation extends beyond the transformer itself to associated circuitry. Flyback converter designs typically require fewer capacitors, resistors, and auxiliary components than comparable topologies, further contributing to miniaturization. Modern integrated controller circuits incorporate multiple functions previously requiring discrete components, including pulse-width modulation control, current sensing, protection features, and startup circuits. When combined with an appropriately designed flyback transformer input voltage specification, these integrated controllers enable remarkably compact power supply implementations. Applications in consumer electronics particularly benefit from this compactness, where every cubic millimeter of internal volume represents valuable real estate for batteries, displays, or additional features. The multiple output capability of flyback transformer input voltage designs adds another dimension of value beyond simple space savings. By incorporating additional secondary windings on the transformer core, designers can generate several isolated output voltages simultaneously from a single conversion stage. Each secondary winding can be wound with a specific turns ratio to produce the desired output voltage, whether positive or negative relative to its isolated ground reference. This capability proves invaluable in systems requiring multiple voltage rails, such as microprocessor systems needing core voltage, I/O voltage, and peripheral voltages, or communication equipment requiring positive and negative supply rails for operational amplifiers and line drivers. The practical implementation of multiple outputs from a single flyback transformer input voltage involves careful attention to cross-regulation characteristics. While one output typically serves as the primary regulated output with tight voltage control through feedback to the switching controller, additional outputs are semi-regulated, with their voltages determined primarily by turns ratios and loading conditions. Modern design techniques including synchronous rectification, coupled output inductors, and multi-loop control schemes can improve cross-regulation performance when applications demand tighter specifications across multiple outputs. The cost implications of generating multiple outputs from one flyback transformer input voltage design are substantial. Eliminating the need for separate DC-DC converters for each output voltage dramatically reduces bill-of-material costs, assembly labor, and potential failure points. A single flyback converter with three outputs typically costs significantly less than three separate converters while occupying a fraction of the circuit board area. This economic advantage makes flyback solutions particularly attractive for cost-sensitive consumer applications and high-volume manufacturing scenarios. From a reliability perspective, the integrated nature of flyback transformer input voltage designs with multiple outputs reduces system complexity and improves overall dependability. Fewer components mean fewer solder joints, interconnections, and potential failure mechanisms. The thermal performance also benefits from concentrated heat generation in a single area that can be effectively managed with strategically placed heatsinks or thermal vias, rather than multiple hot spots distributed across the circuit board requiring individual thermal management solutions.
