High Voltage Power Supply Module: Advanced Solutions for Industrial and Scientific Applications

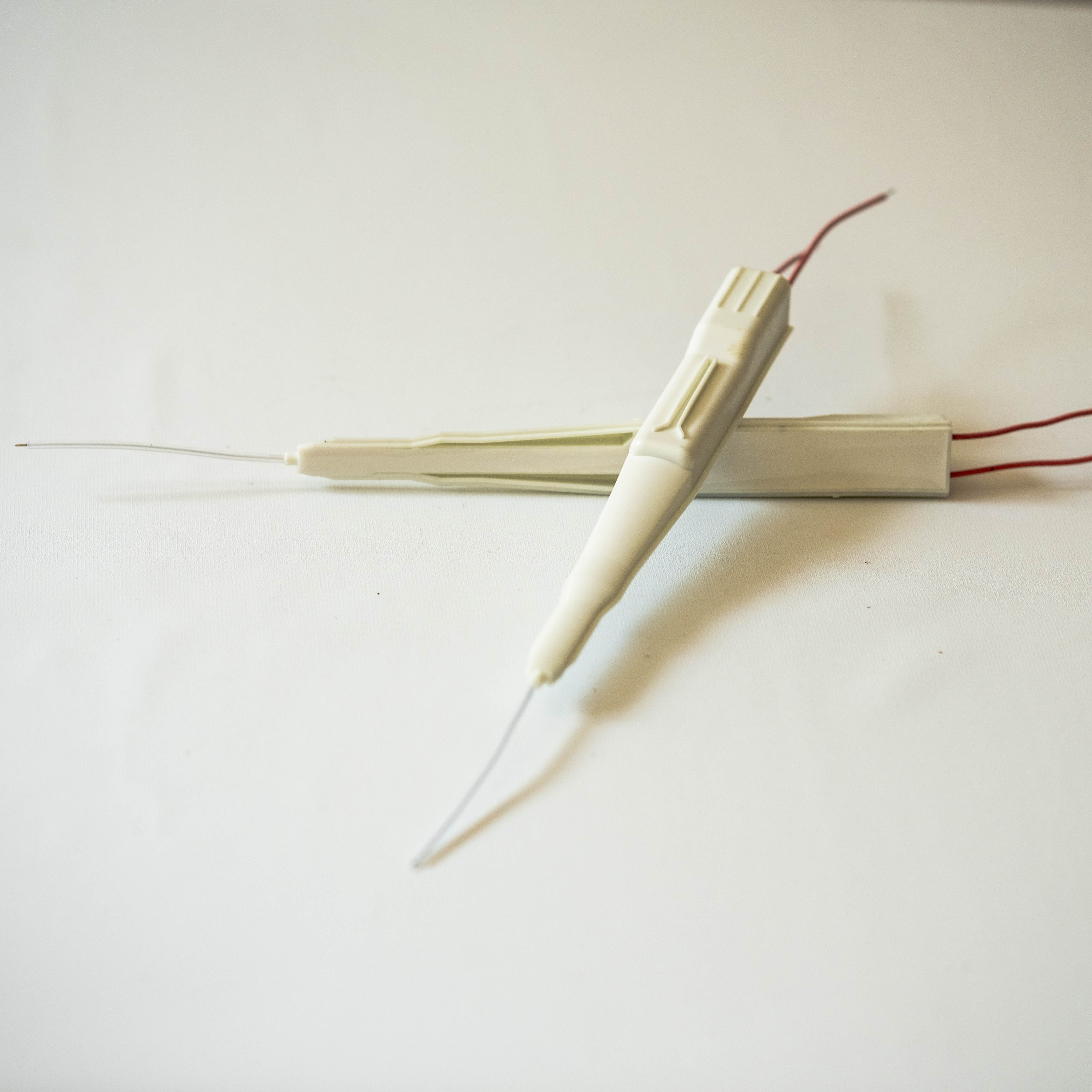

The exceptional voltage regulation capability of a high voltage power supply module stands as one of its most valuable characteristics, directly influencing the performance and reliability of connected equipment. This regulation excellence stems from sophisticated feedback control systems that continuously monitor output voltage and instantaneously compensate for any deviations from the target setpoint. When your application demands unwavering voltage precision, whether for analytical instrumentation requiring measurement accuracy or industrial processes needing consistent treatment conditions, the tight regulation ensures optimal results. The control circuitry employs high-speed operational amplifiers and precision reference sources that maintain output voltage within remarkably narrow tolerances, typically less than one percent deviation across the full load range. This stability persists even when input voltage swings significantly or when load current changes abruptly, conditions that would cause inferior power supplies to falter. The practical implications prove substantial: in medical imaging equipment, stable high voltage ensures consistent image quality and accurate diagnostics; in semiconductor manufacturing, precise voltage control determines product yield and quality; in scientific research, measurement repeatability depends entirely on power supply stability. The high voltage power supply module achieves this performance through multiple regulation stages, often combining coarse pre-regulation with fine output adjustment, creating a cascaded control architecture that responds rapidly to disturbances while maintaining long-term accuracy. Temperature compensation circuits counteract the natural voltage drift that components exhibit across operating temperature ranges, ensuring specification compliance whether the module operates in climate-controlled laboratories or harsh industrial environments. Low output ripple and noise represent another dimension of stability, with quality modules employing extensive filtering and careful layout practices to minimize AC components superimposed on the DC output. This clean power proves critical for sensitive detection systems, precision measurement equipment, and any application where electrical noise might interfere with signal integrity. The voltage regulation extends across dynamic conditions too, with fast transient response ensuring voltage remains stable during rapid load changes that might occur during equipment startup, operational mode transitions, or when driving reactive loads. Users benefit from this regulation excellence through improved equipment performance, reduced measurement uncertainty, enhanced product quality, and decreased failure rates of components exposed to the high voltage, ultimately translating to better outcomes and lower operating costs across the application lifecycle.

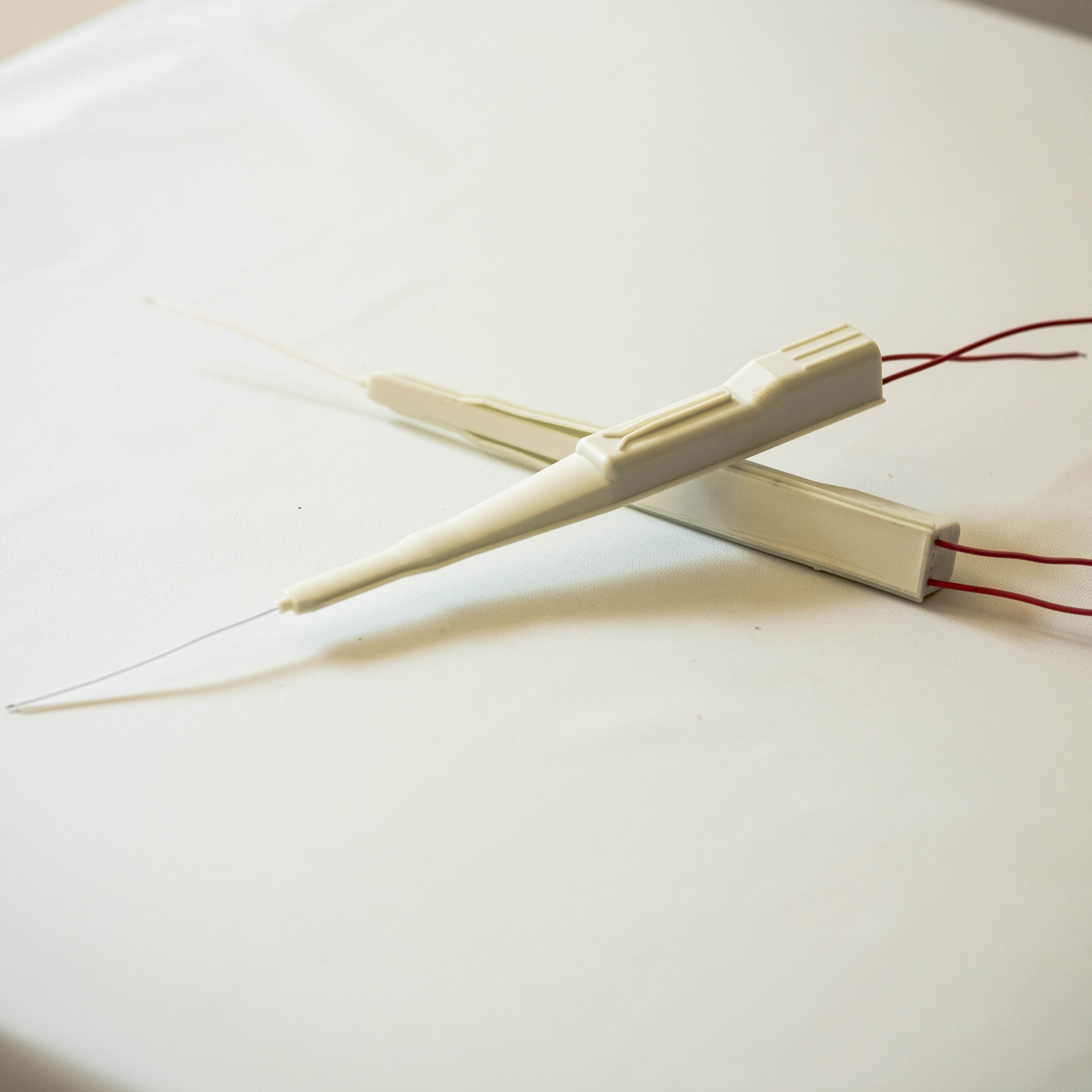

Safety considerations take center stage in high voltage power supply module design, with manufacturers implementing multiple layers of protection that safeguard both equipment and personnel from the inherent dangers of elevated voltages. These comprehensive safety features distinguish quality modules from basic designs, providing peace of mind and reducing risk exposure in your operations. Overcurrent protection serves as the first line of defense, continuously monitoring output current and immediately limiting or shutting down the module when current exceeds safe thresholds, preventing damage to the power supply itself while protecting downstream components from excessive current that could cause overheating or catastrophic failure. The implementation typically involves precision current sensing combined with fast-acting control circuits that respond within microseconds to dangerous conditions. Overvoltage protection guards against internal component failures or control circuit malfunctions that might otherwise drive output voltage to destructive levels, employing crowbar circuits or clamp mechanisms that activate when voltage exceeds maximum ratings, safely diverting energy and preventing damage to expensive connected equipment. Short circuit protection enables the high voltage power supply module to survive direct output short conditions without damage, automatically entering a protected state and recovering once the fault clears, eliminating the need for fuse replacement or module servicing after accidental shorts that inevitably occur during equipment development, maintenance, or operation. Thermal management incorporates temperature monitoring with automatic derating or shutdown when operating temperatures approach limits, protecting semiconductor components from heat-induced degradation while signaling the need for improved cooling or reduced loading. Arc detection circuitry recognizes the distinctive signatures of electrical arcing, a particular concern in high voltage applications, and rapidly disables output to prevent sustained arcs that could damage insulators, create safety hazards, or ignite flammable materials in certain environments. Input protection features including transient suppressors and filtering shield the module from power line disturbances, voltage spikes, and electromagnetic interference that could disrupt operation or cause internal damage. Isolation barriers between input, output, and control circuits prevent dangerous voltages from reaching user-accessible areas, meeting stringent safety standards and enabling safe integration even in equipment operated by non-technical personnel. Interlock capability allows external safety switches to disable the module, supporting integration with enclosure access panels or emergency stop systems that form part of comprehensive machine safety architectures. Status indication through LED displays or electronic signals provides immediate visibility into operating state and fault conditions, enabling rapid diagnosis and appropriate response to problems. These layered protections work synergistically, creating robust safety that reduces liability exposure, protects capital equipment investments, prevents injury, and ensures regulatory compliance across diverse applications where high voltage power supply modules deliver essential functionality.

The remarkable power density achieved by modern high voltage power supply modules represents a significant technological advancement that delivers tangible benefits for equipment designers and end users alike. This compact form factor results from sophisticated engineering that maximizes power handling capability while minimizing physical dimensions, creating opportunities for more capable products within existing space constraints or enabling entirely new equipment configurations previously impossible with bulky conventional power supplies. The size reduction stems from multiple technological innovations working together harmoniously: high-frequency switching operation allows transformer cores to shrink dramatically since magnetic component size inversely relates to operating frequency, with modules switching at hundreds of kilohertz occupying a fraction of the volume required by traditional line-frequency designs. Advanced semiconductor devices including high-voltage MOSFETs and IGBTs handle substantial power in small packages while maintaining efficiency, reducing both the size of switching components and the associated heat dissipation requirements that otherwise demand large heat sinks. Multilayer printed circuit board construction enables dense component placement and short connection paths that reduce parasitic inductance and capacitance, improving electrical performance while conserving board area. The compact high voltage power supply module design facilitates system-level benefits that extend beyond simple space savings: distributed power architectures become practical, with modules located close to their loads rather than in centralized power supply racks, reducing long high-voltage cable runs that introduce voltage drop, capacitance, and safety concerns. Equipment portability improves dramatically when power supply bulk and weight decrease, enabling field-deployable instruments, portable medical devices, and mobile industrial systems that previously required stationary installation. Thermal management becomes more straightforward as smaller modules integrate easily with forced air cooling systems or conduct heat efficiently to chassis mounting surfaces, maintaining safe operating temperatures without bulky cooling apparatus. Manufacturing efficiency increases since compact modules simplify assembly processes, reduce material costs, and enable automated handling with standard pick-and-place equipment. The space savings create opportunities for enhanced functionality, as equipment designers can allocate the recovered volume to additional features, improved user interfaces, or enhanced environmental protection rather than being consumed entirely by power supply requirements. Cabinet and enclosure costs decrease when overall equipment dimensions shrink, reducing material expenses, shipping costs, and installation space requirements at customer facilities. Despite their compact dimensions, these modules maintain full electrical performance specifications, delivering high output power, excellent regulation, and comprehensive protection features without compromise. The high power density reflects careful attention to electromagnetic compatibility, with tight component placement and short current loops minimizing radiated emissions that might interfere with nearby sensitive circuits. Reliability remains uncompromised through careful thermal design that ensures component temperatures stay within ratings despite the compact construction, often incorporating intelligent thermal management that monitors temperatures and adjusts operation to maintain safe conditions. This combination of small size and full capability makes the high voltage power supply module an enabling technology for next-generation equipment designs across medical, industrial, scientific, and commercial applications where space efficiency directly influences product competitiveness and market success.
