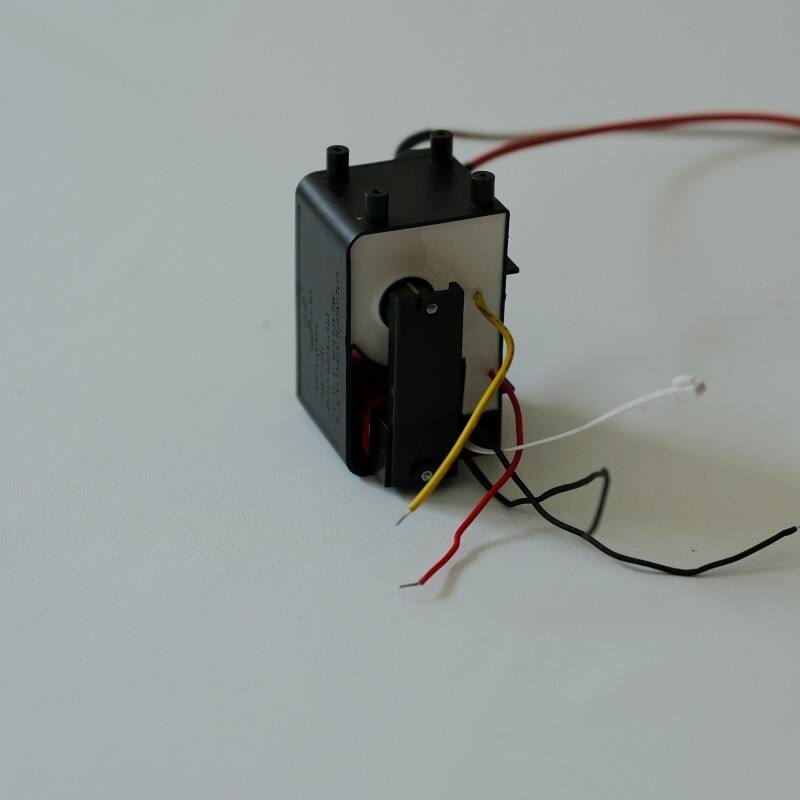

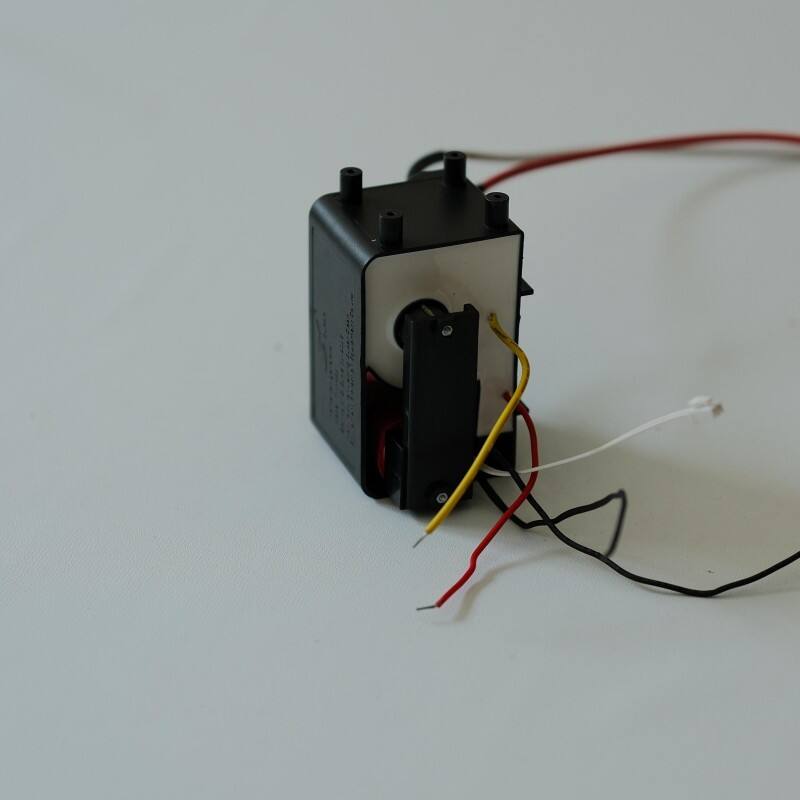

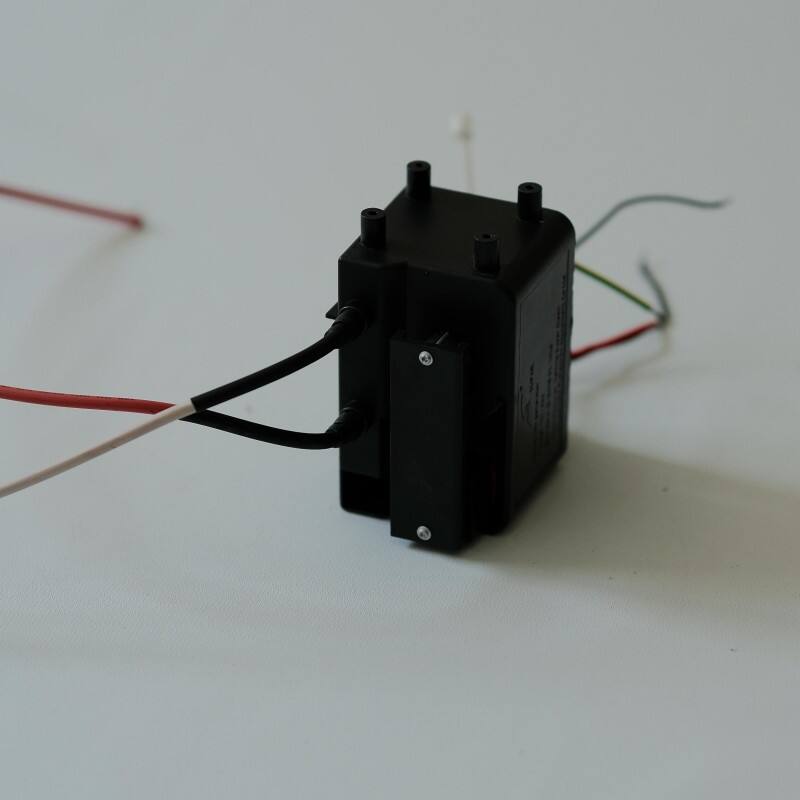

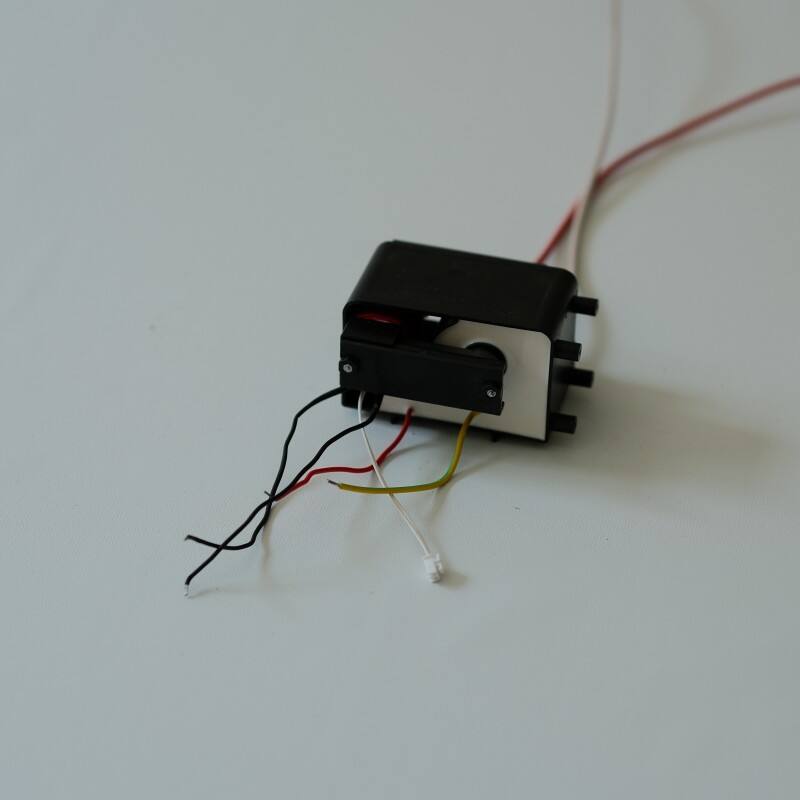

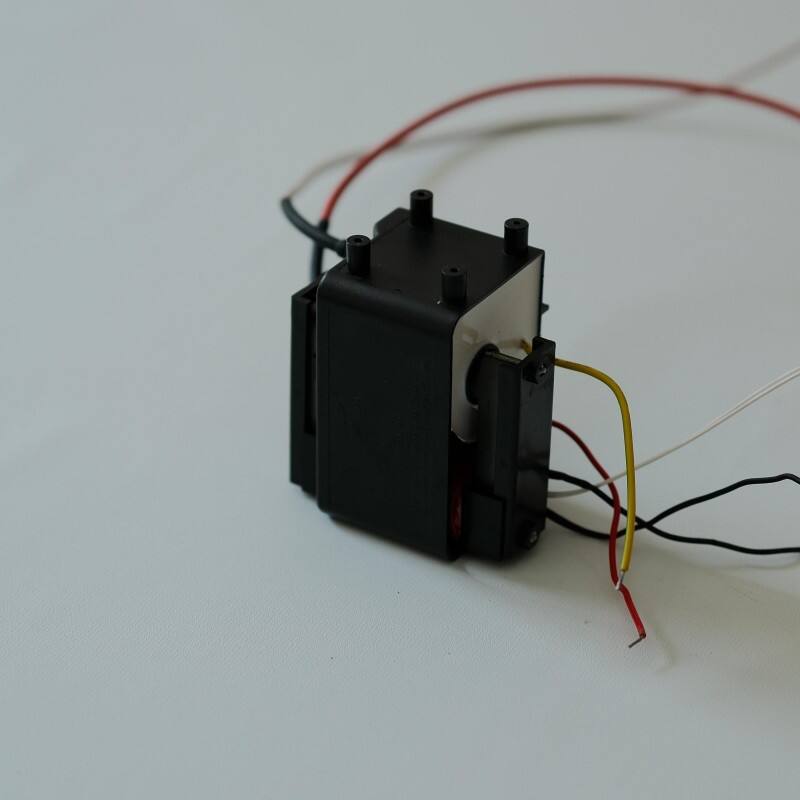

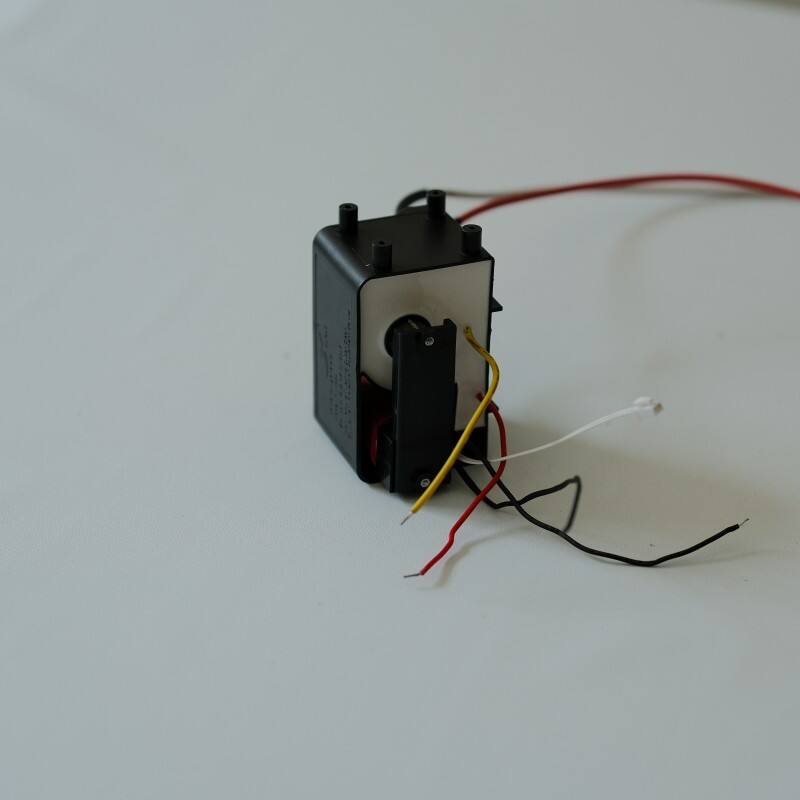

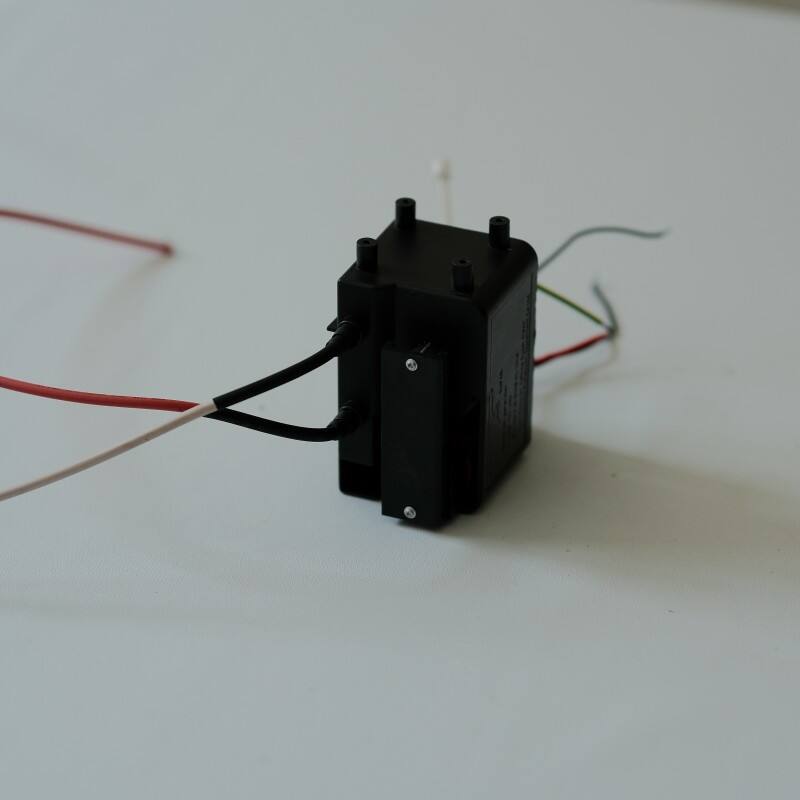

200W High Voltage Transformer

Description

Engineered as the core component of modern kitchen fume purification systems, our high-voltage power module delivers unmatched performance, safety, and reliability through meticulous material selection and innovative engineering.

1. Superior Material Selection for Maximum Safety & Durability

• Flame-Retardant PPO Housing: A premium engineering plastic chosen for its exceptional properties, Polyphenylene Oxide (PPO) is our material of choice for the product housing. This commitment directly translates to enhanced high-temperature resistance and operational safety.

• Exceptional Electrical Insulation: Among all engineering plastics, PPO possesses one of the lowest dielectric constants and dissipation factors. Critically, these electrical properties stay stable across a broad range of temperatures and humidity levels, rendering it an ideal material for low-, medium-, and high-frequency electric field applications. This inherent stability ensures consistent insulation— a critical factor for high-voltage components.

• Outstanding Thermal Stability: PPO features a heat deflection temperature exceeding 190°C and a brittle point as low as -170°C, guaranteeing that our housing retains structural integrity and dimensional stability under extreme operating conditions. Using PPO is a fundamental assurance of the product’s long-term reliability, flame retardancy, and resistance to thermal deformation.

2. High-Voltage Cables with Exceptional Chemical Resistance

• Teflon Insulation: Teflon (PTFE) is utilized for the critical high-voltage cables. This material offers superior resistance to oil, strong acids, alkalis, and oxidants, and its non-hygroscopic nature (no moisture absorption) is vital for preventing current leakage and tracking. This selection significantly enhances the module’s overall insulation strength and high-voltage endurance, ensuring stable performance in harsh kitchen environments.

3. User-Centric Design for Effortless Installation

• Revolutionized Mounting System: We have developed a streamlined bolt-on mounting system via integrated fixing holes, moving beyond the messy and time-consuming traditional adhesive fixation. This innovation simplifies installation for our clients, drastically cuts down installation time, and completely eliminates the waiting period for adhesive curing— leading to faster commissioning and lower overall labor costs.

4. Structural Innovation for Enhanced Performance

• Integrated Monobloc Design: Representing a significant leap forward, our groundbreaking integrated housing structure is meticulously engineered to provide superior protection and insulation at the high-voltage series connection points.

• Eliminates Arcing & Boosts Power: This robust design effectively reduces the risk of arcing or sparking at these critical junctions. Furthermore, the compact and efficient layout not only minimizes the unit’s overall footprint but also enables an increase in the module’s power output and operational voltage, delivering higher performance in a smaller package.

Specifications

Applications
· Large-Scale Industrial Kitchens
· Mobile Food Vending Carts

For commercial kitchen oil fume purification systems, purification performance starts with a powerful "heart" – the high-voltage electrostatic power supply. And the pulse of this heart? It comes from the most precise, mission-critical component: the High-Voltage Generator (HV Generator).

As a professional HV Generator manufacturer trusted by global businesses, Yangzhou Sanxing Technology CO.,LTD knows that a stable, high-performance HV Generator is the foundation of effective oil fume purification. This is how our HV Generators work seamlessly with power supply systems to deliver unbeatable adsorption and purification – designed for reliability, efficiency, and hassle-free operation.

Step 1: Precision Installation – Quick, Compatible, and Secure

Our HV Generators are engineered from the ground up for easy integration into any power supply enclosure – saving you time and reducing installation headaches.

1. Positioning & Securing: Dedicated mounting spots in power supply enclosures (with standard brackets/screw holes) pair perfectly with our compact, standardized HV Generators. Enjoy a tight, vibration-resistant fit that prevents loose connections – no extra modifications needed.

2. Electrical Connections:
· Input (Low-Voltage Side): Connects to 12V/24V DC power and control signals with clear labeling and fool-proof design – eliminate wiring mistakes, even for non-experts.
· Output (High-Voltage Side): High-quality silicone rubber cables (high-voltage, high-temperature, and flame-resistant) link directly to the purifier’s anode (ionization tubes/anode cylinders). Ensure safe, lossless energy transmission every time.

3. Insulation & Protection: Sealed within the power supply enclosure, our HV Generator module is fully shielded from dust, moisture, and leakage. Safety you can trust – no risks, no downtime.

Now you have an "energy core" ready to deliver tens of thousands of volts of ultra-high voltage to your purification electric field – reliable, durable, and built for heavy-duty use.

Step 2: Synergistic Operation – Unleash Powerful Electrostatic Adsorption

Once powered on, our HV Generator kicks off an efficient, three-step oil fume purification process that outperforms competitors:

1. Energy Conversion (HV Generator’s Superpower): The power supply control board converts 220V AC mains to stable low-voltage DC – which our HV Generator boosts to 10,000V–20,000V DC negative high voltage in an instant (via high-frequency oscillation, step-up transformer, and voltage multiplier rectification).

2. Electrostatic Field Formation: This intense negative high voltage creates an inhomogeneous electrostatic field between the purifier’s anodes and grounded cathodes (collector plates/enclosure) – the perfect trap for oil mist.

3. Three-Step Purification Excellence:
· Ionization: Oil fume particles collide with high-speed electrons and gain a negative charge – instant targeting.
· Adsorption: Coulomb force pulls negatively charged particles to grounded cathode plates (like iron filings to a magnet) – fast, thorough, and unyielding.
· Deposition & Collection: Trapped oil droplets coalesce and drain into the collection tray – complete "gas-to-liquid" separation, keeping kitchens clean and compliant.

FAQ

Q:How long does production and delivery take?
A:The production cycle for standard parameters typically ranges from 4 to 5 days, while customized products may take up to 10 days. Generally, the logistics time for international shipments is between one and two weeks.

Q:Can I request custom designs or sizes?
A:Certainly. We can manufacture products according to the parameters you provide. Regarding the dimensions, we will definitely meet your requirements to the best of our ability. If the subsequent order volume is substantial, we can offer the service of creating a dedicated mold for your specified products at our own expense.

Q:What is the fastest way to contact you?
A:WeChat APP is the fastest way to contact me,my ID is ppxs0712,and you can also send me email,I will check it everyday. My phone number is +8618168269966,and my email is [email protected].

Q:What are your shipping terms?
A:Normally, the volume of our goods is not very large. For international shipments, we do not cover the shipping costs. Usually, the shipping fees are calculated based on the weight and volume of the products. According to our past experience, the shipping costs will not be very high.
