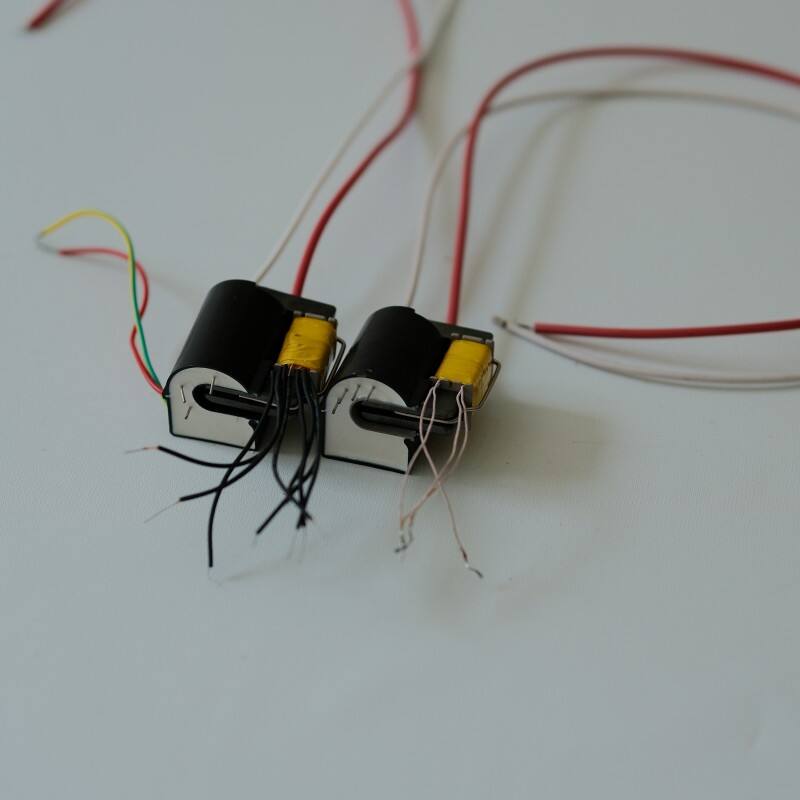

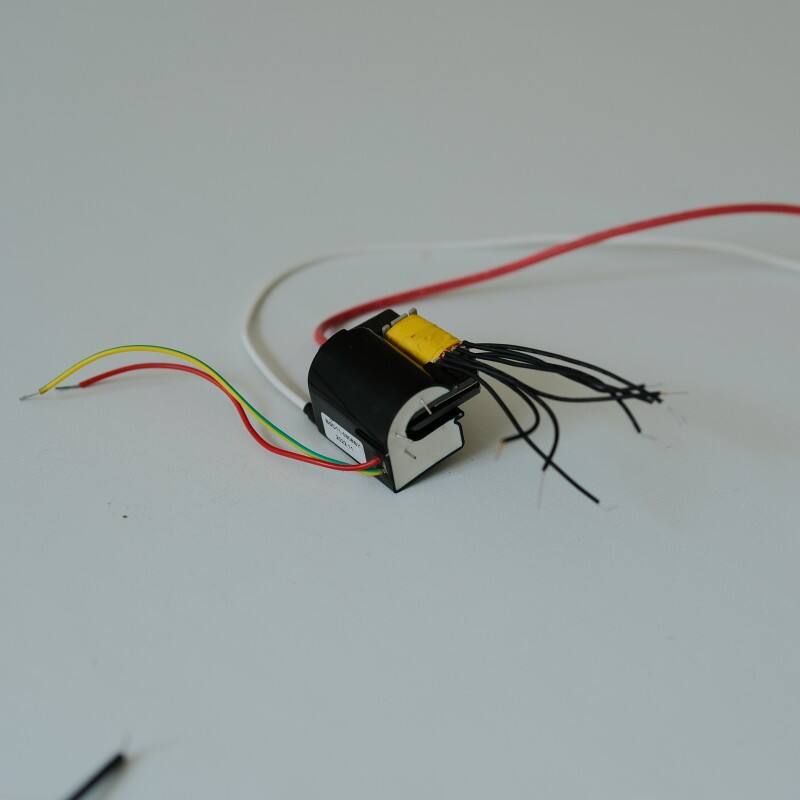

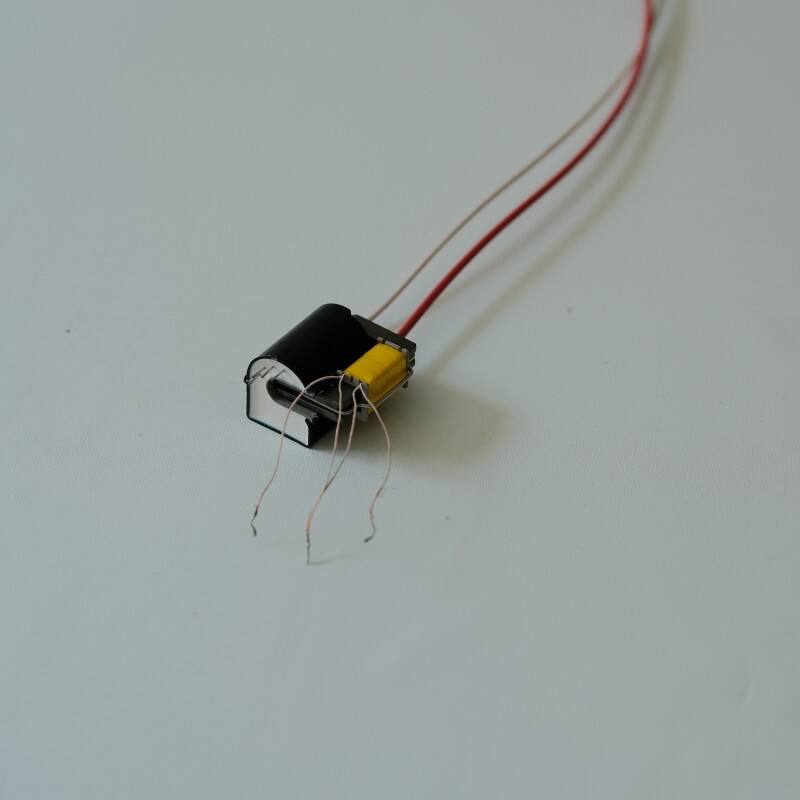

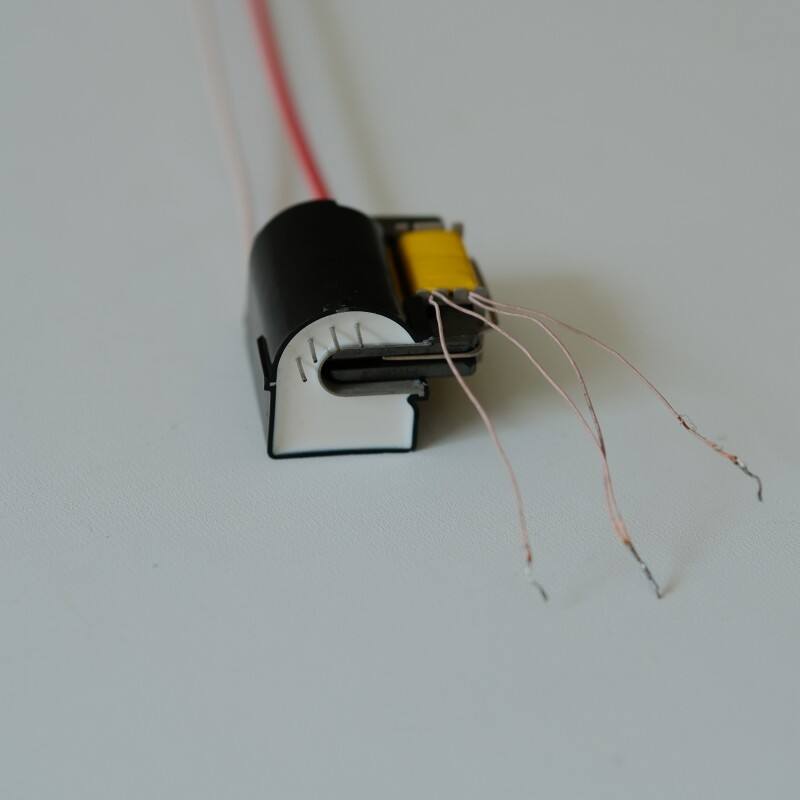

50W High Voltage Transformer

Description

Our high-voltage power module is designed to act as the core component for modern kitchen fume purification systems, delivering unmatched performance, safety, and reliability through the meticulous selection of materials and innovative engineering solutions.

1. Superior Material Selection for Maximum Safety & Durability

• Flame-Retardant PPO Housing: Polyphenylene Oxide (PPO), a premium engineering plastic renowned for its exceptional properties, is the material we insist on using for the product housing. This commitment directly translates into improved high-temperature resistance and enhanced operational safety.

• Exceptional Electrical Insulation: One of the lowest dielectric constants and dissipation factors among all engineering plastics is a key advantage of PPO. Critically, these electrical attributes remain stable across a wide spectrum of temperatures and humidity levels, making it a perfect fit for applications involving low-, medium-, and high-frequency electric fields. This inherent stability secures consistent insulation— a critical requirement for high-voltage components.

• Outstanding Thermal Stability: PPO guarantees that our housing maintains structural integrity and dimensional stability under extreme operating conditions, thanks to its heat deflection temperature above 190°C and brittle point as low as -170°C. The employment of PPO serves as a fundamental assurance of the product’s long-term reliability, flame retardancy, and resistance to thermal deformation.

2. High-Voltage Cables with Exceptional Chemical Resistance

• Teflon Insulation: Teflon (PTFE) is the material we utilize for the critical high-voltage cables. It delivers superior resistance to oil, strong acids, alkalis, and oxidants, and its non-hygroscopic nature (meaning it does not absorb moisture) is crucial for preventing current leakage and tracking. This material choice significantly enhances the module’s overall insulation strength and high-voltage endurance, ensuring steady performance in harsh kitchen environments.

3. User-Centric Design for Effortless Installation

• Revolutionized Mounting System: A streamlined bolt-on mounting system via integrated fixing holes has been developed by us, moving beyond the messy and time-consuming traditional method of adhesive fixation. This innovation makes installation easier for our clients, drastically shortens installation time, and fully eliminates the waiting period needed for adhesive curing— ultimately leading to faster commissioning and reduced overall labor costs.

4. Structural Innovation for Enhanced Performance

• Integrated Monobloc Design: Our groundbreaking integrated housing structure is a significant step forward, crafted with meticulous attention to detail to provide superior protection and insulation at the high-voltage series connection points.

• Eliminates Arcing & Boosts Power: The risk of arcing or sparking at these critical junctions is effectively mitigated by this robust design. Furthermore, the compact and efficient layout not only decreases the unit’s overall footprint but also facilitates an increase in the module’s power output and operational voltage, enabling higher performance to be delivered from a smaller package.

Specifications

Applications
· Large-Scale Industrial Kitchens
· Mobile Food Vending Carts

Tired of inefficient oil fume purification in commercial kitchens? The secret to consistent, high-performance results lies in the "heart" of your system: the high-voltage electrostatic power supply – and its core component, the High-Voltage Generator (HV Generator).

Yangzhou Sanxing Technology CO.,LTD is a professional HV Generator manufacturer with a track record of powering reliable purification systems worldwide. We understand that a stable, long-lasting HV Generator isn’t just a part – it’s a solution to costly downtime, poor air quality, and compliance issues. Here’s how our generators work with power supply systems to deliver the purification you can count on.

Step 1: Precision Installation – Designed for Your Convenience

Our HV Generators are built for seamless compatibility and stress-free installation – because your time matters.

1. Positioning & Securing: Dedicated mounting locations in power supply enclosures (standard brackets/screw holes) match our compact, standardized HV Generators. Enjoy a secure fit that resists vibration – no loose connections, no maintenance headaches.

2. Electrical Connections:
· Input (Low-Voltage Side): Connect to 12V/24V DC power and control signals with intuitive labeling and error-proof design – reduce installation time and avoid costly mistakes.
· Output (High-Voltage Side): Premium high-voltage silicone rubber cables (resistant to high voltage, heat, and flame) connect directly to the purifier’s anode (ionization tubes/anode cylinders). Ensure safe, efficient energy transfer – no power loss, no safety risks.

3. Insulation & Protection: Fully sealed within the power supply enclosure, our HV Generator is protected from dust, moisture, and high-voltage leakage. Reliability in any environment – rain or shine, heavy use or light.

You now have an "energy core" that delivers tens of thousands of volts of ultra-high voltage to your purification electric field – built to last, designed to perform.

Step 2: Synergistic Operation – Powerful Purification, Every Time

When you power on, our HV Generator and power supply system work in tandem to deliver fast, effective oil fume removal – keeping your kitchen compliant and your air clean.

1. Energy Conversion: The control board converts 220V AC to stable low-voltage DC, which our HV Generator boosts to 10,000V–20,000V DC negative high voltage (via high-frequency oscillation, step-up transformer, and voltage multiplier rectification) – instant power, no lag.

2. Electrostatic Field Formation: This powerful voltage creates an inhomogeneous electrostatic field between the anodes and grounded cathodes – the ultimate oil mist trap.

3. Three-Step Purification Process:
· Ionization: Oil fume particles collide with high-speed electrons and become negatively charged – targeted for removal.
· Adsorption: Coulomb force pulls particles to grounded cathode plates (like a magnet to iron filings) – thorough, no escape.
· Deposition & Collection: Oil droplets merge, flow to the collection tray, and complete "gas-to-liquid" separation – easy to clean, zero mess.

FAQ

Q:How long does production and delivery take?
A:The production cycle for standard parameters typically ranges from 4 to 5 days, while customized products may take up to 10 days. Generally, the logistics time for international shipments is between one and two weeks.

Q:Can I request custom designs or sizes?
A:Certainly. We can manufacture products according to the parameters you provide. Regarding the dimensions, we will definitely meet your requirements to the best of our ability. If the subsequent order volume is substantial, we can offer the service of creating a dedicated mold for your specified products at our own expense.

Q:What is the fastest way to contact you?
A:WeChat APP is the fastest way to contact me,my ID is ppxs0712,and you can also send me email,I will check it everyday. My phone number is +8618168269966,and my email is [email protected].

Q:What are your shipping terms?
A:Normally, the volume of our goods is not very large. For international shipments, we do not cover the shipping costs. Usually, the shipping fees are calculated based on the weight and volume of the products. According to our past experience, the shipping costs will not be very high.
