High Voltage Driver Module Solutions - Precision Control, Safety & Performance

The comprehensive protection architecture integrated into high voltage driver modules provides users with unprecedented safety margins and equipment longevity that far exceed traditional high-voltage control methods. At the core of this protection philosophy lies a multi-layered approach that monitors critical parameters continuously and responds instantaneously to abnormal conditions. Overcurrent protection circuits detect excessive current flow within microseconds, disconnecting the high voltage driver module from the load before semiconductor junctions reach destructive temperature levels. This rapid response prevents catastrophic failures that could otherwise propagate through connected equipment, potentially causing extensive collateral damage. Thermal monitoring systems embedded throughout the module measure junction temperatures at multiple locations, ensuring that safe operating limits are never exceeded even under sustained heavy load conditions. When temperatures approach maximum ratings, intelligent control algorithms automatically reduce output power or initiate shutdown sequences, protecting both the high voltage driver module itself and connected components. Overvoltage protection mechanisms guard against voltage spikes originating from lightning strikes, power grid disturbances, or load switching transients that could otherwise punch through insulation barriers and destroy sensitive components. Fast-acting clamp circuits limit voltage excursions to safe levels while shunting excess energy away from vulnerable circuit elements. Short-circuit protection represents another critical safety feature, immediately detecting fault conditions and isolating affected circuits before destructive current levels are reached. This capability proves especially important in applications where equipment malfunctions or operator errors might inadvertently create direct paths between high-voltage terminals. Isolation barriers exceeding industry standards separate control inputs from high-voltage outputs, ensuring that ground faults or insulation breakdowns in the power stage cannot propagate dangerous voltages back to control systems or operator interfaces. Reinforced insulation, optocouplers, and transformer-based coupling techniques create multiple independent barriers that maintain safety even when individual protection elements fail. Diagnostic reporting features alert operators to marginal operating conditions before complete failures occur, enabling preventive maintenance that avoids costly unplanned downtime. Status indicators provide real-time visibility into protection system activity, helping troubleshoot application issues and optimize system configurations for maximum reliability.

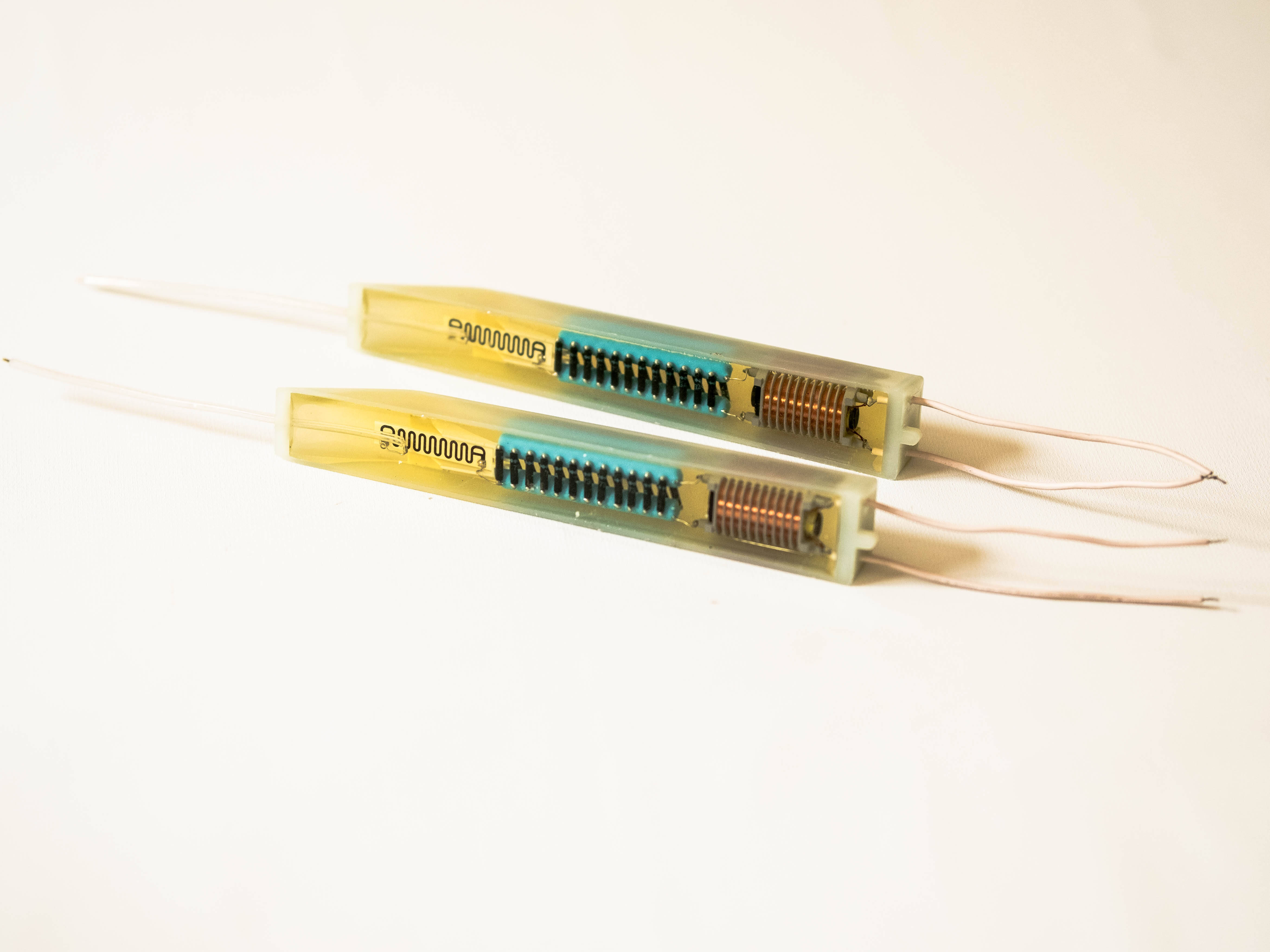

The exceptional control precision delivered by modern high voltage driver modules empowers users to achieve performance levels previously unattainable with conventional high-voltage power supplies and control systems. At the heart of this capability lies advanced digital signal processing technology that monitors output parameters thousands of times per second, comparing actual values against desired setpoints and making continuous micro-adjustments to maintain exact specifications. This closed-loop control approach compensates automatically for variations in input voltage, load impedance, temperature effects, and component aging, ensuring consistent output characteristics throughout the operational lifetime of the high voltage driver module. Resolution specifications typically reach 12-bit or 16-bit accuracy, enabling voltage adjustments in increments smaller than one percent of full-scale output. Such fine-grained control proves essential in applications like mass spectrometry, where ion trajectories must be manipulated with extreme precision, or in medical imaging systems where contrast resolution depends directly on high-voltage stability. Fast response times characterize another dimension of control performance, with modern high voltage driver modules capable of implementing commanded changes in microseconds. This rapid response enables dynamic modulation of output voltages at frequencies reaching hundreds of kilohertz, supporting applications like pulse-width modulation for electrostatic precipitators or frequency-swept operation in impedance spectroscopy equipment. Programmable waveform generation features allow users to create complex voltage profiles customized to specific application requirements, including linear ramps, exponential curves, or arbitrary user-defined patterns. This flexibility eliminates the need for external waveform generators and simplifies system integration while ensuring perfect synchronization between control signals and high-voltage outputs. Low ripple and noise specifications distinguish quality high voltage driver modules from basic power supplies, with output voltage fluctuations often held below 0.1 percent peak-to-peak. Clean outputs prove critical in sensitive measurement applications where signal-to-noise ratios directly determine detection limits, or in manufacturing processes where voltage variations cause unacceptable product quality variations. Temperature coefficient performance, specifying how output voltage changes with ambient temperature, typically ranges below 100 parts per million per degree Celsius in precision modules. This stability maintains calibration accuracy across wide environmental temperature swings without requiring frequent readjustment. Remote control interfaces including analog inputs, digital communication protocols, and software APIs enable seamless integration of high voltage driver modules into automated systems, supporting Industry 4.0 initiatives and remote monitoring capabilities.

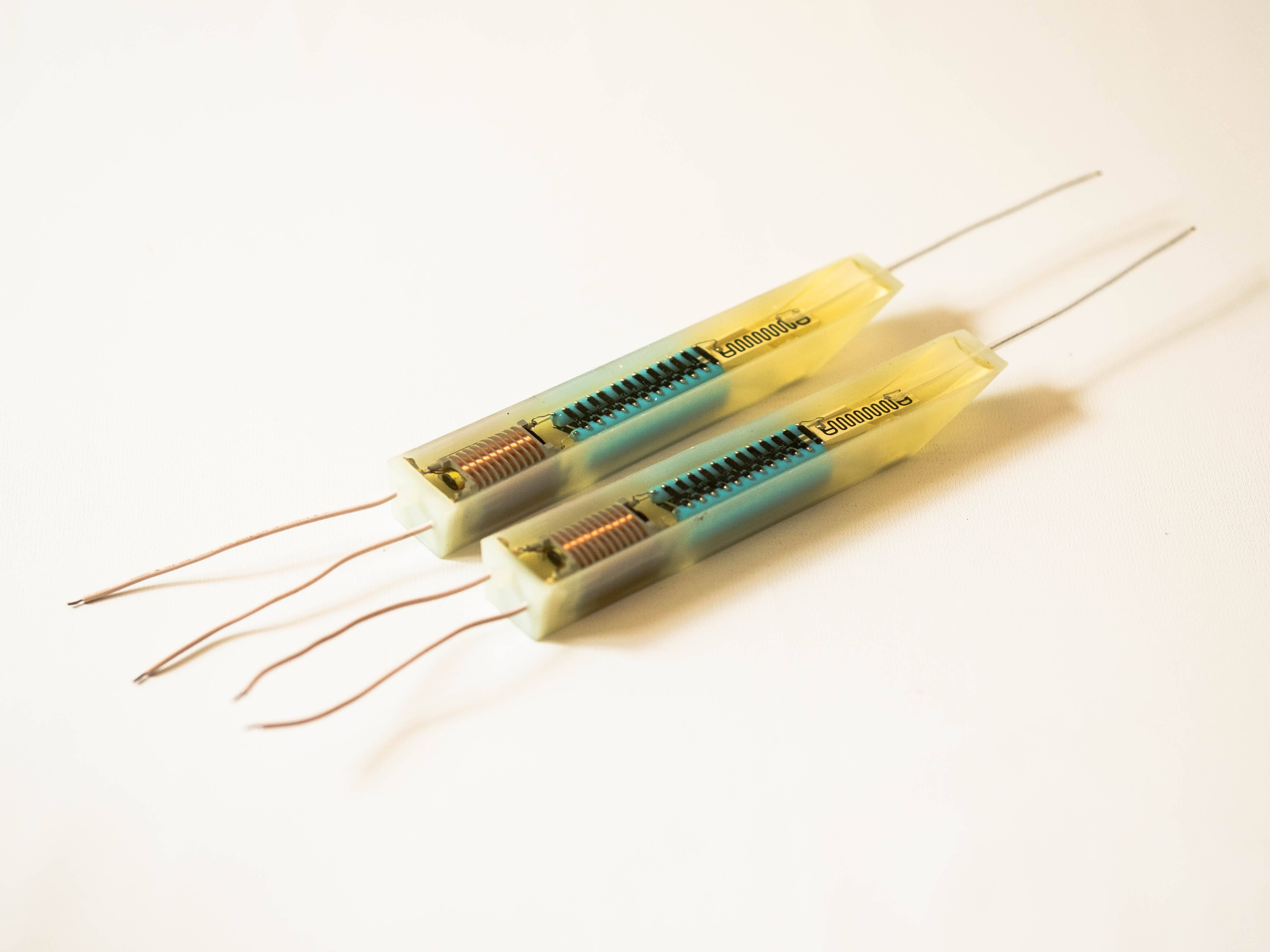

The physical design characteristics and integration features of contemporary high voltage driver modules deliver substantial practical advantages that reduce implementation costs, shorten project timelines, and simplify ongoing system maintenance throughout operational lifetimes. Compact form factors represent a primary benefit, as advanced semiconductor technology and innovative circuit topologies enable manufacturers to package high-power capabilities into surprisingly small enclosures. Power density specifications often exceed 10 watts per cubic centimeter, allowing high voltage driver modules to fit into space-constrained equipment where traditional discrete component designs would prove impossible to accommodate. This miniaturization directly translates into smaller end products, reduced shipping costs, and improved equipment aesthetics that enhance market appeal. Standardized mounting configurations simplify mechanical integration, with industry-standard footprints, hole patterns, and connector locations enabling designers to create equipment enclosures before finalizing electrical specifications. DIN rail mounting options facilitate installation in control panels alongside other automation components, while chassis-mount designs suit equipment requiring direct thermal coupling to heat sinks or cold plates. Plug-and-play connectivity accelerates installation, as pre-terminated cable assemblies and keyed connectors eliminate wiring errors that plague custom implementations. Color-coded terminals and clearly marked polarity indicators further reduce installation mistakes that could damage equipment or create safety hazards. Comprehensive documentation packages accompanying quality high voltage driver modules include detailed specifications, application notes, reference designs, and simulation models that enable engineers to evaluate performance characteristics before committing to hardware purchases. Example code for common microcontroller platforms and communication protocols reduces software development effort, allowing programmers to implement control interfaces quickly without mastering low-level hardware details. Thermal management considerations receive careful attention in module designs, with base plates, mounting surfaces, and heat sink interfaces optimized for efficient heat transfer. Thermal resistance specifications and derating curves provide clear guidance for cooling system design, ensuring reliable operation across specified temperature ranges. Wide input voltage ranges accommodate various power supply sources without requiring precision regulation, simplifying system design and reducing component costs. Operating temperature specifications spanning industrial ranges from minus 40 to plus 85 degrees Celsius enable deployment in harsh environments including outdoor installations, automotive applications, and industrial process equipment. Electromagnetic compatibility designs meeting international standards ensure that high voltage driver modules neither emit excessive interference nor succumb to external electromagnetic disturbances, preventing communication disruptions and control instabilities in electrically noisy environments.
