Condenser Ignition Coil: High-Performance Spark Generation for Reliable Engine Starting

condenser ignition coil

The condenser ignition coil represents a fundamental component in spark ignition engine systems, serving as the cornerstone of reliable engine starting and smooth operation. This electrical device combines a specialized coil assembly with an integrated capacitor, commonly known as a condenser, to generate the high voltage necessary for spark plug ignition. The condenser ignition coil transforms the battery's low voltage, typically 12 volts, into thousands of volts required to create a powerful spark across the spark plug gap. This conversion process enables the air-fuel mixture within the engine cylinder to ignite at precisely the right moment, ensuring optimal combustion efficiency. The primary function of the condenser ignition coil involves storing and releasing electrical energy in a controlled manner, working in harmony with the breaker points or electronic switching mechanisms. When the primary circuit interrupts, the magnetic field within the coil collapses rapidly, inducing a high voltage in the secondary winding that travels to the spark plug. The integrated condenser plays a crucial role by absorbing the electrical surge that occurs when the points open, preventing arcing and extending the life of contact points. Technological advancements have refined the condenser ignition coil design over decades, incorporating better insulation materials, improved winding techniques, and more durable construction methods. Modern versions feature enhanced heat dissipation capabilities, weather-resistant housings, and optimized magnetic core materials that deliver consistent performance across varying temperature conditions. These coils find widespread application in small engines, motorcycles, lawn equipment, generators, agricultural machinery, and vintage automotive systems. The versatility of the condenser ignition coil makes it an essential component for both professional mechanics and equipment owners who value dependable ignition performance and straightforward maintenance procedures.

Choosing a condenser ignition coil brings numerous practical benefits that directly impact your equipment's performance and your overall ownership experience. First and foremost, these coils deliver exceptional reliability in demanding conditions, ensuring your engine starts consistently regardless of weather or environmental factors. The robust construction withstands vibration, moisture, and temperature extremes that would compromise lesser components, giving you confidence that your equipment will perform when you need it most. The simplicity of the condenser ignition coil design translates into easier troubleshooting and maintenance, allowing you to diagnose issues quickly without specialized diagnostic equipment. Unlike complex electronic ignition modules that require professional-grade scanners, these coils work with straightforward testing procedures using basic multimeters, saving you time and money on service calls. Another significant advantage lies in the cost-effectiveness of condenser ignition coils compared to modern alternatives, providing excellent value without sacrificing performance quality. Replacement parts remain widely available and affordable, ensuring you can maintain your equipment economically over its entire lifespan. The proven technology behind these coils means decades of refinement have eliminated design flaws, resulting in a mature product that performs its function exceptionally well. Users benefit from improved fuel efficiency because the strong, consistent spark ensures complete combustion of the air-fuel mixture, extracting maximum energy from every drop of fuel. This efficient combustion also reduces harmful emissions, making your equipment more environmentally friendly while complying with emission standards. The condenser ignition coil generates a particularly hot spark that ignites fuel mixtures reliably even in cold starting conditions, eliminating frustrating failed start attempts on chilly mornings. Installation proves straightforward for most applications, with clear mounting points and simple wiring connections that don't require advanced electrical knowledge. The universal compatibility of many condenser ignition coil models allows them to replace original equipment across various brands and applications, providing flexibility for repairs and upgrades. Performance remains stable throughout the coil's service life, with minimal degradation until the component reaches its natural end point, giving you predictable maintenance schedules. The electromagnetic interference produced by these coils stays minimal, preventing radio frequency disruption to other electronic systems in your vehicle or equipment. Durability extends beyond just the coil itself, as the integrated condenser protects contact points from excessive wear, multiplying the service intervals for the entire ignition system and reducing overall maintenance frequency and costs.

Tips And Tricks

May

Certification Standards: Navigating UL, CE, and ISO Requirements for HV Modules

UL Certification: Safety and EMC Foundations for High Voltage Modules UL certification establishes critical safety benchmarks for high voltage modules in industrial and automotive applications. As a voluntary standard, it validates product reliabil...

Jun

Core Material Selection: Ferrite vs. Nanocrystalline in Flyback Transformer Design

Ferrite Cores in Flyback Transformers: Performance and Limitations Permeability, saturation flux density (Bsat), and thermal stability from 100–500 kHz Ferrite cores dominate flyback transformer designs for their high permeability—typic...

Jun

Sustainability Advantages: Zero-VOC Powder Coating Compared to Solvent-Based Paints

Zero-VOC Emissions: Regulatory Compliance and Health Protection How powder coating eliminates VOC release by design—no solvents, no off-gassing Unlike solvent-based paints that release volatile organic compounds (VOCs) during application and ...

Apr

What are the key steps for flyback transformer maintenance

Proper maintenance of a flyback transformer is essential to ensure the longevity, reliability, and optimal performance of power supply systems across various industrial and commercial applications. Understanding the key steps for flyback transformer ...

Get a Free Quote

Our representative will contact you soon.

Mobile/WhatsApp

Name

Company Name

Message

0/1000

Superior Spark Generation for Optimal Engine Performance

The condenser ignition coil excels at producing an exceptionally powerful and consistent spark that transforms engine performance across all operating conditions. This capability stems from the precision-engineered relationship between the primary and secondary windings, which creates an ideal voltage multiplication effect. When electrical current flows through the primary winding, it builds a strong magnetic field around the iron core, storing substantial energy in the magnetic flux. The moment the points open or the electronic trigger activates, this magnetic field collapses with remarkable speed, inducing a voltage in the secondary winding that can reach 20,000 to 40,000 volts depending on the specific design. This extreme voltage easily overcomes the resistance of the spark plug gap, even when deposits or wear have increased the gap distance beyond factory specifications. The integrated condenser plays an essential role in this process by preventing the magnetic field from dissipating through arcing at the breaker points, ensuring that maximum energy transfers to the secondary circuit for spark generation. The resulting spark exhibits both high voltage and sufficient current flow to ignite even lean or rich fuel mixtures that might challenge weaker ignition systems. This robust spark generation directly translates to smoother engine operation, with reduced misfires and more complete combustion cycles. Engines equipped with quality condenser ignition coils start more readily, idle more smoothly, and respond more crisply to throttle inputs because every cylinder fires reliably at the correct instant. The consistency of spark energy across the entire RPM range means your engine performs equally well whether idling slowly or running at maximum speed, unlike some ignition systems that struggle at extreme engine speeds. Temperature variations that affect other components have minimal impact on condenser ignition coil performance because the fundamental electromagnetic principles remain constant regardless of ambient conditions. This reliability proves particularly valuable for outdoor power equipment and agricultural machinery that must operate in diverse environments from freezing winters to scorching summers, ensuring productivity continues uninterrupted throughout all seasons.

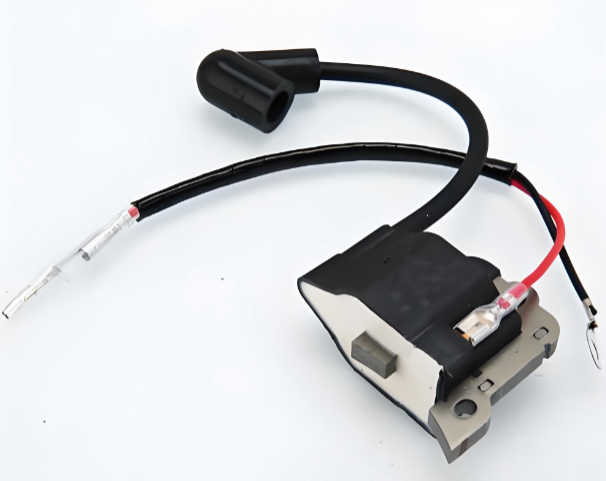

Extended Service Life Through Proven Engineering

The condenser ignition coil delivers outstanding longevity that reduces replacement frequency and lowers total ownership costs over your equipment's lifetime. This extended service life results from carefully selected materials and time-tested construction methods that prioritize durability above all else. Manufacturers wind the primary and secondary coils using high-grade copper wire with exceptional conductivity and mechanical strength, ensuring the windings maintain their electrical characteristics even after years of thermal cycling. The insulation materials separating these windings consist of advanced polymers and resins that resist breakdown from electrical stress, heat, and environmental contaminants, preventing short circuits that would render the coil useless. The iron core within the coil uses laminated steel sheets that minimize eddy current losses while providing excellent magnetic properties, creating an efficient energy transfer mechanism that doesn't degrade with use. Housing materials incorporate weather-resistant plastics or powder-coated metals that protect internal components from moisture intrusion, corrosive chemicals, and physical impacts encountered during normal operation. The condenser itself features metalized film or foil construction with dielectric materials rated for millions of charge-discharge cycles, far exceeding the demands of typical service intervals. Terminal connections utilize corrosion-resistant brass or plated steel with secure mechanical attachment that maintains electrical continuity despite vibration and thermal expansion. Quality control procedures during manufacturing ensure each condenser ignition coil meets strict performance standards before leaving the factory, eliminating defective units that might fail prematurely. Field experience demonstrates that properly maintained condenser ignition coils routinely provide five to ten years of reliable service, with many units exceeding these timeframes in less demanding applications. This longevity means fewer interruptions to your work schedule and reduced maintenance budgets since you're not constantly purchasing replacement ignition components. The predictable failure modes of condenser ignition coils also work in your favor because they typically exhibit warning signs before complete failure, giving you time to order replacements and schedule maintenance rather than facing unexpected breakdowns. When these coils do eventually wear out, they fail gradually rather than catastrophically, often still providing partial function that allows you to limp equipment to a repair location rather than being stranded in the field.

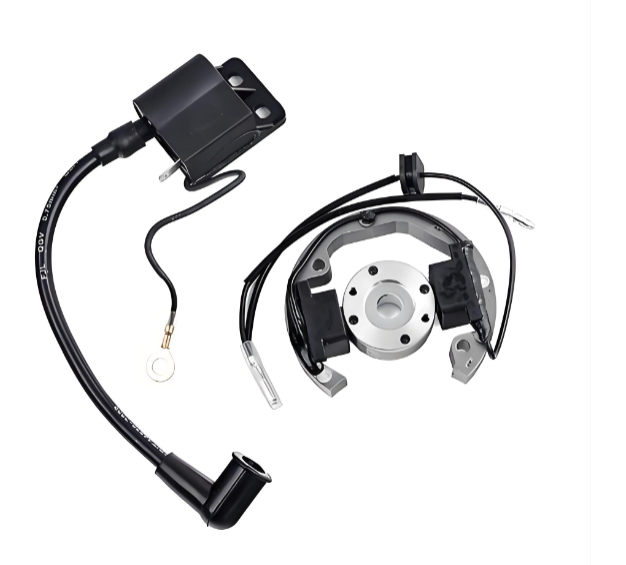

Simplified Diagnostics and Maintenance Procedures
